Caterpillar

IT18B

Wheel Loader

Operating Weight
21,539 lb
Bucket Capacity - heaped
1.80 yd³
Gross Power
95.3 hp
All wheel loaders

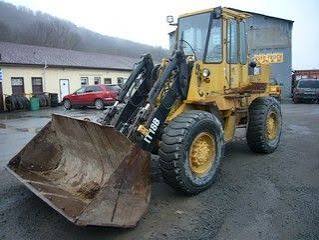

Caterpillar IT18B Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight21,539 lb
Tire Size17.5-25
Turning Radius210 in
Static Tipping Load - Bucket14,264 lb
Static Tipping Load - Forks11,294 lb
Static Tipping Load - Material Handler5,161 lb

Engine

Engine specifications
Engine Model3204
Displacement317 in³
Gross Power95.3 hp

Hydraulic System

Hydraulic System specifications
Raise Time6.1 s
Lower Time3.6 s
Dump Time1.8 s

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab124 in
Wheelbase107 in
Hinge Pin - Max Height150 in
Length w/ Bucket on Ground256 in
Dump Clearance at Max Lift114 in
Reach at Max Height and Dump40 in
Max Lift Height144 in
Fork Tine Length48 in
Length with out Forks on Ground276 in

Transmission

Transmission specifications
Max Speed - Forward16.5 mph
Max Speed - Reverse17.3 mph
Number of Forward Gears3
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped1.80 yd³
Bucket Capacity - struck1.50 yd³
Breakout Force16,593 lb
