Wacker Neuson

WL60

Wheel Loader

Bucket Capacity - heaped
1.50 yd³
Gross Power
102.0 hp
All wheel loaders

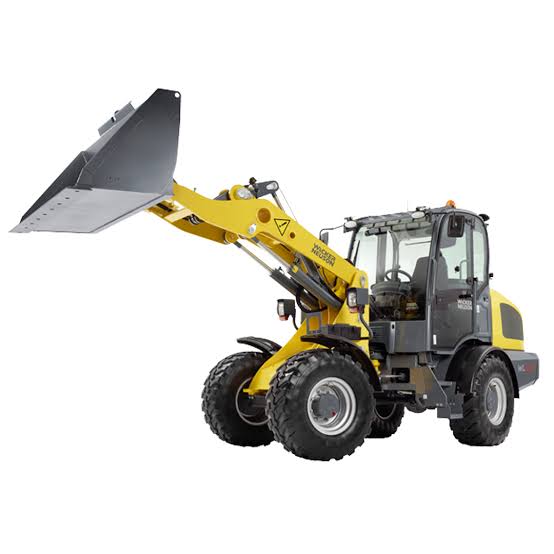

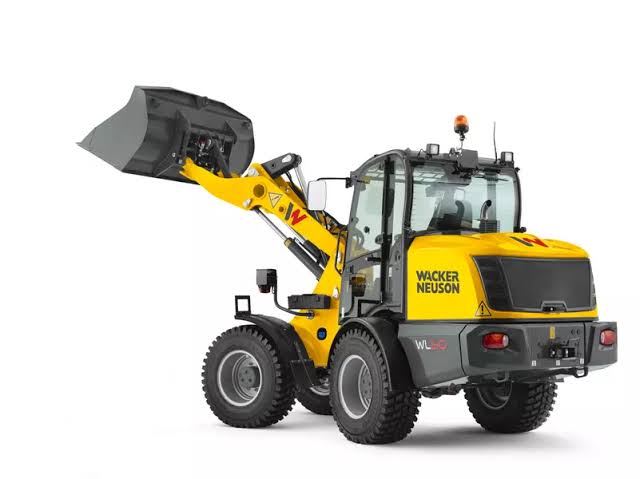

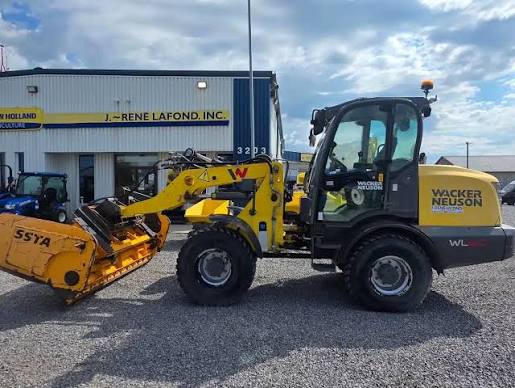

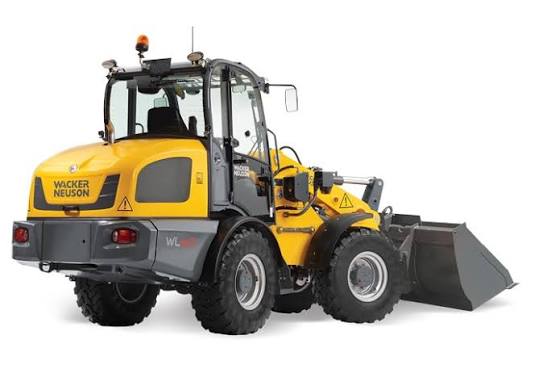

Wacker Neuson WL60 Wheel Loader
1 / 5
Image 1 of 5
Image: wackerneuson.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Max Speed12.0 mph
Tire Size405/70-18EM ET0
Operating Voltage12 V

Engine

Engine specifications
Engine Model854F-E34TA
Power Measured @2,500 rpm
Gross Power102.0 hp
Number of Cylinders4
Engine MakePerkins
Alternator120 A

Weights

Weights specifications
Operating Weight13,007 lb
Breakout force maximum7,898 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity26.0 gal/min
Relief Valve Pressure6,454 psi

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab107 in
Wheelbase85 in
Overall Length189 in
Width Over Tires73 in
Length with Bucket on Ground233 in
Turning Radius66 in
Track Width56 in

Fluid Capacities

Fluid Capacities specifications
Fuel Tank27.8 gal
Hydraulic oil tank25.1 gal

Bucket

Bucket specifications
Bucket Capacity - heaped1.50 yd³
Dumping angle, top33 °

General Specifications

General Specifications specifications
Operating Weight13,007 (5,900) — Starting 2019 Model Year
Operating Weight lbs (kg)13,007 (5,900) — Starting 2025 Model Year
Bucket Capacity1.3 (1.15) — Starting 2024 Model Year
Bucket Capacity cu. yd. (cu m)1.3 (1.15) — Starting 2025 Model Year
Engine typePerkins 904J-E36TZ — Starting 2024 Model Year
Engine Power102 (75) — Starting 2021 Model Year
Max Dump Height9.3 (2.82) — Starting 2019 Model Year
Max Dump Height ft.( m)9.3 (2.82) — Starting 2025 Model Year
OperatingWeight lbs. (kg)13,007 (5,900) — Starting 2026 Model Year
Engine Power Gross hp (kW)101 (75) — Starting 2025 Model Year
