Caterpillar
New Holland
E200SR
Excavator
44 specifications
1 / 5

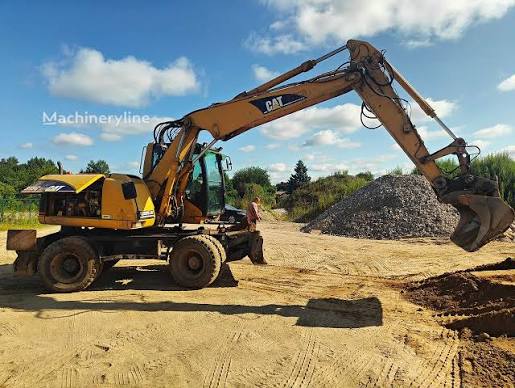

Image 1 of 5
Specifications
81 data points
Operating Specifications
| Operating Weight | 31,967 lb |
|---|---|
| Fuel Capacity | 62.1 gal |
| Hydraulic Pump Flow Capacity | 71.4 gal/min |
| Hydraulic System Fluid Capacity | 43.6 gal |
| Hydraulic System Relief Valve Pressure | 5,076 psi |
| Engine Oil Capacity | 2.4 gal |
| Cooling System Fluid Capacity | 8.0 gal |
| Tire Size | 10-20 (dual pneumatic) |
| Oscillating Axle Angle | 18 ° |
| Front Diff Fluid Capacity | 2.4 gal |
| Rear Diff Fluid Capacity | 3.0 gal |
| Max Steering Angle | 34 ° |
Engine
| Engine Model | Cat 3054E ATAAC |
|---|---|
| Displacement | 269 in³ |
| Net Power | 118.0 hp |
| Bore | 4 in |
| Stroke | 5 in |
| Maximum Torque - 1,400 rpm | 369 lb-ft |
| ISO 9249 | 118.0 hp |
Weights
| Counterweight | 6,393 lb |
|---|---|
| Dozer Blade | 1,422 lb |
| Outriggers | 1,962 lb |
| Front and Rear Outriggers (1) | 32,518 lb |
| Front and Rear Outriggers (2) | 31,747 lb |
| Rear - Dozer Only (1) | 29,983 lb |
| Rear - Dozer Only (2) | 28,880 lb |
| Rear - Dozer, Front Outriggers (1) | 31,967 lb |
| Rear - Dozer, Front Outriggers (2) | 30,865 lb |
Hydraulic System
| Travel Circuit | 5,076 psi |
|---|---|
| Implement/Travel Circuit | 50.0 gal/min |
| Normal | 5,076 psi |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 124 in |
| Wheelbase | 100 in |
| Overall Width | 8 in |
| Upper Structure Clearance | 49 in |
| Overall Width - Outriggers Down | 145 in |
| Counterweight Clearance | 49 in |
Transmission
| Max Travel Speed | 21.2 mph |
|---|---|
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
| Creeper Speed - 1st Gear | 2.5 mph |
| Creeper Speed - 2nd Gear | 9.9 mph |
| Forward/Reverse - 1st Gear | 5.0 mph |
| Forward/Reverse - 2nd Gear | 21.0 mph |
| Maximum Gradeability | 67.0 % |
| Maximum Travel Speed | 21.0 mph |
Tires & Wheels
| Standard | 10.00-20 dual pneumatic |
|---|---|
| Optional | See Optional Equipment |
Bucket
| Reference Bucket Capacity | 0.80 yd³ |
|---|
Service Refill Capacities
| Hydraulic System - Including Tank | 44.0 gal |
|---|---|
| Hydraulic Tank | 25.0 gal |
| Fuel Tank | 62.0 gal |
| Engine Crankcase | 2.4 gal |
| Front Steering Axle - Differential | 2.4 gal |
| Powershift Transmission | 0.8 gal |
| Rear Axle - Housing (Differential) | 2.9 gal |
| Final Drive | 0.7 gal |
| Cooling | 8.0 gal |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Mobile Excavator Option 1
| Max Digging Depth | 204 in |
|---|---|
| Max Cutting Height | 381 in |
| Max Reach Along Ground | 335 in |
| Max Loading Height | 272 in |
| Max Vertical Wall Dig Depth | 138 in |
Boom/Stick Mobile Excavator Option 2
| Max Digging Depth | 215 in |
|---|---|
| Max Cutting Height | 388 in |
| Max Reach Along Ground | 344 in |
| Max Loading Height | 278 in |
| Max Vertical Wall Dig Depth | 143 in |
Boom/Stick Mobile Excavator Option 3
| Max Digging Depth | 227 in |
|---|---|
| Max Cutting Height | 397 in |
| Max Reach Along Ground | 356 in |
| Max Loading Height | 288 in |
| Max Vertical Wall Dig Depth | 154 in |
Boom/Stick Mobile Excavator Option 4
| Max Digging Depth | 197 in |
|---|---|
| Max Cutting Height | 340 in |
| Max Reach Along Ground | 325 in |
| Max Loading Height | 233 in |
| Max Vertical Wall Dig Depth | 134 in |
Fuel Tank
| Fuel Tank Capacity | 62.1 gal |
|---|
