Caterpillar

PM312 Track

Cold Planer

Cutting Width
578 in
Gross Power
325.0 hp
All cold planers/milling machines

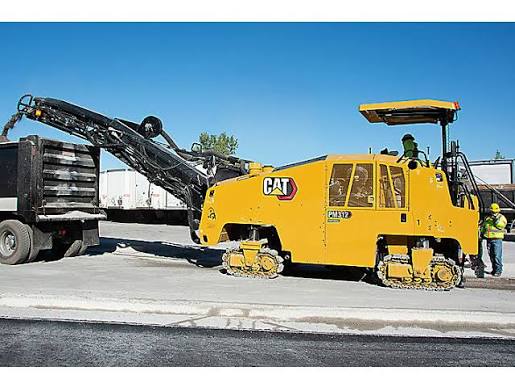

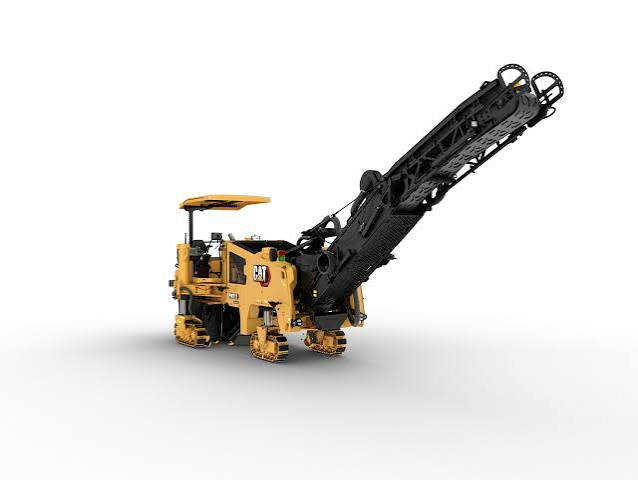

Caterpillar PM312 Track Cold Planer
1 / 5
Image 1 of 5
Image: mustangcat.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Speed1.2 mph
Inside Turn Radius76 in
Maximum Travel Speed3.4 mph

Engine

Engine specifications
Engine ModelC9.3 ACERT
Gross Power325.0 hp

Weights

Weights specifications
Operating Weight - With Full Water Tank48,153 lb
Shipping Weight - With Empty Water Tank44,560 lb

Dimensions

Dimensions specifications
Shipping Width101 in
Operating Width101 in
Maximum Operating Height203 in
Minimum Operating Height119 in
Maximum Truck Clearance186 in
Shipping Length - Base Machine233 in
Shipping Maximum Height118 in
Operating Length - Conveyor Up438 in
Shipping Length - With Conveyor Folded367 in

Service Refill Capacities

Service Refill Capacities specifications
Fuel Tank Capacity158.5 gal
Water Spray System333.0 gal

Conveyor System

Conveyor System specifications
Discharge Conveyor Width24 in
Collecting Conveyor Width24 in
Collecting Conveyor Speed9.4 mph
Discharge Conveyor Maximum Speed9.4 mph
Discharge Conveyor Swing - From Center60 °
Discharge Conveyor Length246 in

Rotary Cutter

Rotary Cutter specifications
Cutting Width578 in

Rotor Assembly

Rotor Assembly specifications
Maximum Cutting Depth13 in
Number of Cutting Tools112
