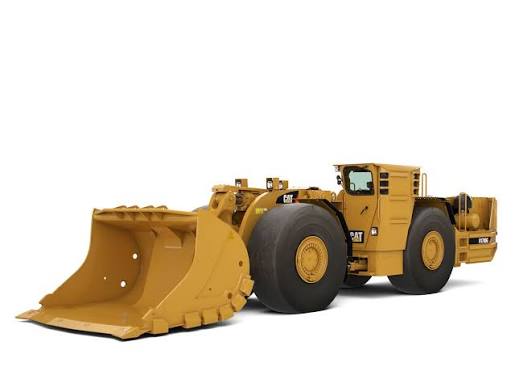

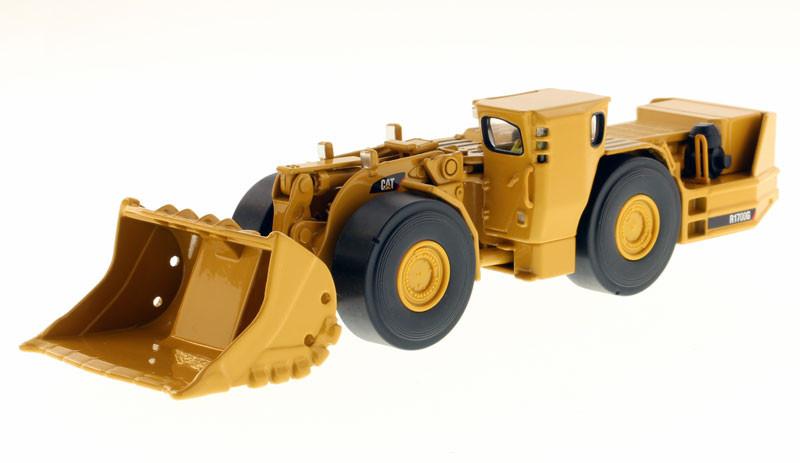

Caterpillar
R1700G
- Operating Weight
- 115,745 lb
- Bucket Capacity - heaped
- 7.49 yd³
- Gross Power
- 353.0 hp
- Net Power
- 323.0 hp
1 / 5
Image 1 of 5
Specifications
34 data points
Operating Specifications
| Operating Weight | 115,745 lb |
|---|---|
| Fuel Capacity | 1,504.8 gal |
| Tire Size | 26.5 x 25 36 PLY STMS L5S |
| Hydraulic System Fluid Capacity | 33.0 gal |
| Static Tipping Weight | 70,065 lb |
| Turning Radius | 271 in |
| Engine Oil Fluid Capacity | 9.0 gal |
| Rear Axle Oscillation | 16 ° |
| Front Axle/Diff Fluid Capacity | 23.8 gal |
| Rear Axle/Diff Fluid Capacity | 23.8 gal |
| Cooling System Fluid Capacity | 16.6 gal |
| Transmission Fluid Capacity | 12.4 gal |
Engine
| Engine Model | C11 ACERT |
|---|---|
| Displacement | 680 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 353.0 hp |
| Net Power | 323.0 hp |
Hydraulic System
| Raise Time | 6.8 s |
|---|---|
| Lower Time | 2.4 s |
| Dump Time | 2.9 s |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 101 in |
| Wheelbase | 145 in |
| Width Over Tires | 104 in |
| Reach at Max Lift and Dump | 70 in |
| Length with Bucket on Ground | 418 in |
| Hinge Pin - Max Height | 162 in |
Transmission
| Max Speed - Forward | 15.0 mph |
|---|---|
| Max Speed - Reverse | 15.7 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 7.49 yd³ |
|---|---|
| Dump Clearance at Max Raise | 97 in |
| Bucket Width | 109 in |
