ChampionChampion
730A
Motor Grader
53 specifications
1 / 5

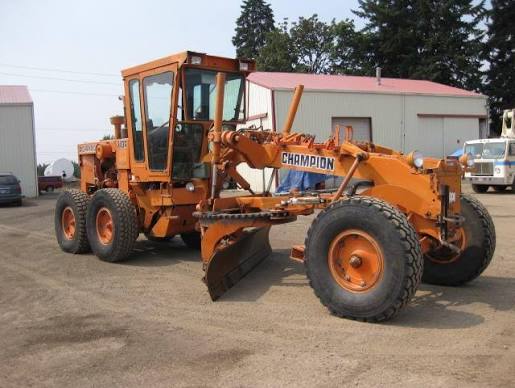

Image 1 of 5
Specifications
57 data points
Operating Specifications
| Std Operation Weight - Total | 30,630 lb |
|---|---|
| Tire Size | 13.00 * 24 G-2 |
| Fuel Capacity | 100.0 gal |
| Std Operation Weight - Front Axle | 9,400 lb |
| Std Operation Weight - Rear Axle | 21,230 lb |
| Hydraulic System Fluid Capacity | 23.8 gal |
| Tandem Case Fluid Capacity (each) | 26.5 gal |
| Cooling System Fluid Capacity | 11.7 gal |
| Transmission Fluid Capacity | 10.3 gal |
| Rear Diff/Final Drive Fluid Capacity | 6.1 gal |
| Oil System Fluid Capacity | 4.4 gal |
Engine
| Engine Model | 6B5.9 |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 140.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,600 rpm |
| Stroke | 5 in |
| Bore | 4 in |
| Torque | 440 lb-ft |
| Gross horsepower | 148.0 hp |
Hydraulic System
| Pump Flow | 50.5 gal/min |
|---|---|
| Relief Valve Pressure | 2,500 psi |
Dimensions
| Wheelbase | 240 in |
|---|---|
| Overall Length | 333 in |
| Overall Width | 98 in |
| Blade Base | 103 in |
| Tread Width | 82 in |
| Overall Height with cab | 133 in |
Transmission
| Max Speed - Forward | 24.5 mph |
|---|---|
| Max Speed - Reverse | 17.8 mph |
| Number of Gears - Forward | 8 |
| Number of Gears - Reverse | 4 |
| Transmission Type | Powershift |
Moldboard
| Moldboard Height | 25 in |
|---|---|
| Moldboard Width | 145 in |
| Moldboard Thickness | 1 in |
| Side Shift Left | 27 in |
| Side Shift Right | 27 in |
| Blade Pull at Max Weight | 19,110 lb |
| Blade Down Pressure | 16,495 lb |
| Max Reach outside - left | 120 in |
| Max Reach outside - right | 121 in |
Circle
| Diameter | 66 in |
|---|---|
| Blade Tip Angle - Front | 47 ° |
| Rotation | 360 ° |
| Blade Tip Angle - Rear | 5 ° |
| Shift Left | 31 in |
| Shift Right | 30 in |
| Blade cutting depth | 33 in |
| Blade ground clearance | 18 in |
Front Axle
| Wheel Lean | 18 ° |
|---|---|
| Oscillation - Total | 16 ° |
| Ground Clearance | 24 in |
Steering System
| Turning Radius | 306 in |
|---|---|
| Articulation Angle | 22 ° |
