Champion

740

Motor Grader

All motor graders

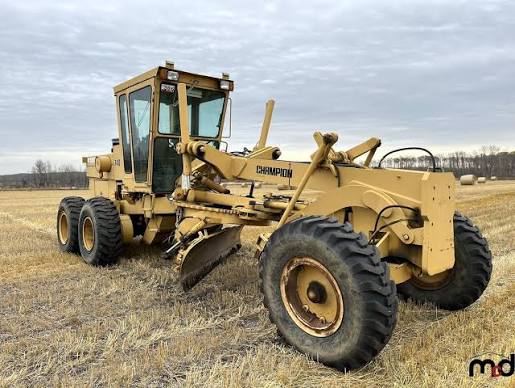

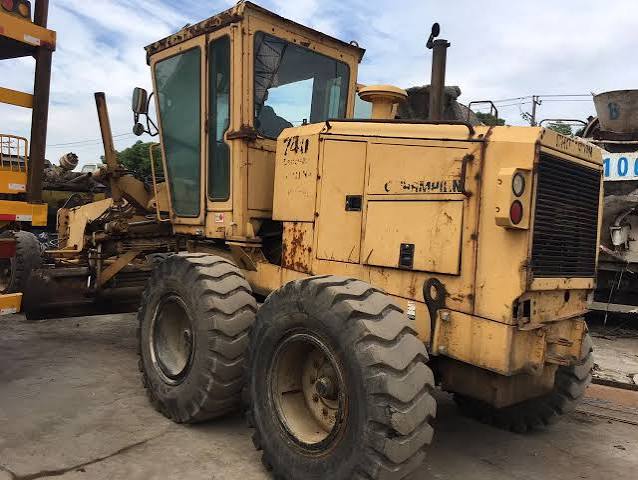

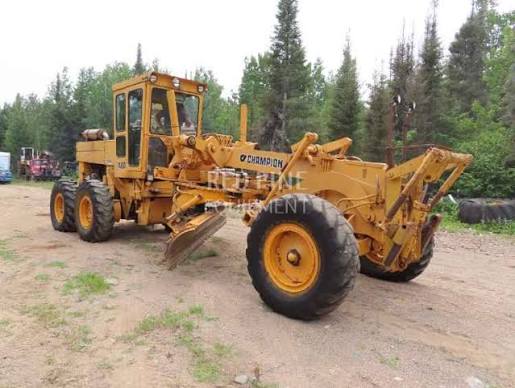

Champion 740 Motor Grader
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

51 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total34,210 lb
Tire Size14.00 * 24 G-2
Fuel Capacity100.0 gal
Std Operation Weight - Front Axle10,312 lb
Std Operation Weight - Rear Axle23,898 lb
Hydraulic System Fluid Capacity23.8 gal
Tandem Case Fluid Capacity (each)26.5 gal
Cooling System Fluid Capacity12.7 gal
Transmission Fluid Capacity10.3 gal
Rear Diff/Final Drive Fluid Capacity6.1 gal
Oil System Fluid Capacity10.4 gal

Engine

Engine specifications
Engine ModelM11
Displacement659 in³
Power Measured @2,100 rpm
Net Power210.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,300 rpm
Gross horsepower225.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow48.3 gal/min
Relief Valve Pressure2,500 psi

Dimensions

Dimensions specifications
Wheelbase246 in
Overall Length341 in
Overall Width101 in
Blade Base108 in
Tread Width84 in
Overall Height with cab134 in

Transmission

Transmission specifications
Max Speed - Forward26.6 mph
Max Speed - Reverse19.3 mph
Transmission TypePowershift

Moldboard

Moldboard specifications
Moldboard Height29 in
Moldboard Width145 in
Moldboard Thickness1 in
Side Shift Left27 in
Side Shift Right27 in
Max Reach outside - left118 in
Max Reach outside - right114 in

Circle

Circle specifications
Max Lift Above Ground20 in
Diameter66 in
Blade Tip Angle - Front48 °
Rotation360 °
Blade Tip Angle - Rear3 °
Shift Left26 in
Shift Right24 in
Blade cutting depth30 in
Blade ground clearance18 in

Front Axle

Front Axle specifications
Wheel Lean18 °
Oscillation - Total16 °
Ground Clearance25 in

Steering System

Steering System specifications
Turning Radius421 in
Articulation Angle22 °
