Champion

750A

Motor Grader

All motor graders

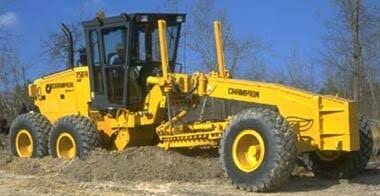

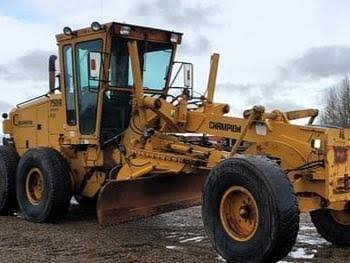

Champion 750A Motor Grader
1 / 5
Image 1 of 5
Image: ebay.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total38,200 lb
Tire Size16.00 * 24 G-2
Fuel Capacity100.0 gal
Std Operation Weight - Front Axle11,950 lb
Std Operation Weight - Rear Axle26,250 lb
Hydraulic System Fluid Capacity23.8 gal
Tandem Case Fluid Capacity (each)26.5 gal
Cooling System Fluid Capacity10.8 gal
Transmission Fluid Capacity10.3 gal
Rear Diff/Final Drive Fluid Capacity9.0 gal
Oil System Fluid Capacity10.4 gal

Engine

Engine specifications
Engine ModelLT-10-C
Displacement610 in³
Power Measured @2,100 rpm
Net Power200.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,300 rpm
Stroke5 in
Bore5 in
Gross horsepower215.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow48.2 gal/min
Relief Valve Pressure2,500 psi

Dimensions

Dimensions specifications
Wheelbase246 in
Overall Length343 in
Overall Width110 in
Blade Base108 in
Tread Width91 in
Overall Height with cab138 in

Transmission

Transmission specifications
Max Speed - Forward24.2 mph
Max Speed - Reverse17.3 mph
Number of Gears - Forward8
Number of Gears - Reverse4
Transmission TypePowershift

Moldboard

Moldboard specifications
Moldboard Height31 in
Moldboard Width168 in
Moldboard Thickness1 in

Circle

Circle specifications
Diameter67 in
Blade Tip Angle - Front46 °
Rotation360 °
Blade Tip Angle - Rear13 °
Shift Left18 in
Blade cutting depth25 in
Blade ground clearance19 in

Front Axle

Front Axle specifications
Wheel Lean18 °
Oscillation - Total16 °
Ground Clearance28 in

Steering System

Steering System specifications
Turning Radius306 in
Articulation Angle22 °
