Champion

C80C

Motor Grader

All motor graders

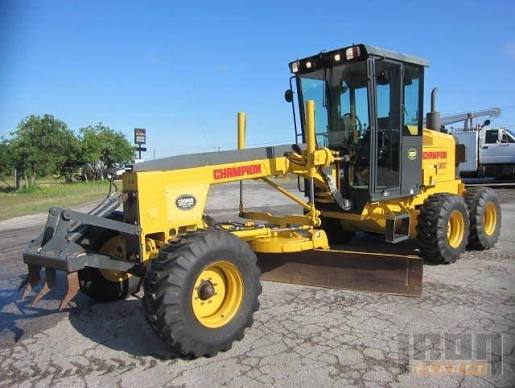

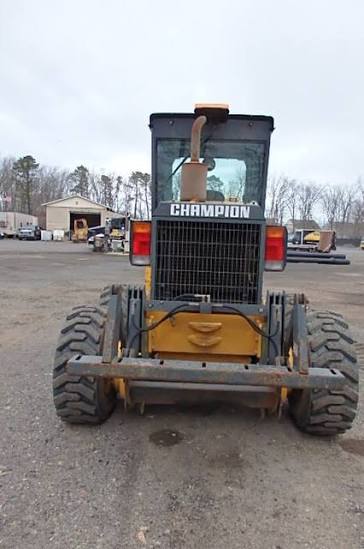

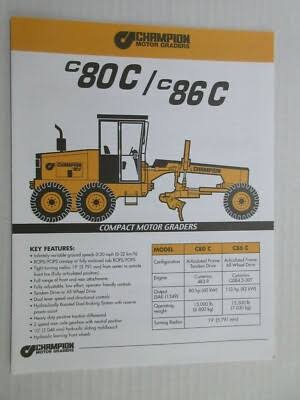

Champion C80C Motor Grader
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,000 lb
Std Operation Weight - Total14,992 lb

Engine

Engine specifications
Engine Model4BT3.9
Displacement238 in³
Power Measured @2,500 rpm
Number of Cylinders4
Net Power Gear 1-2110.0 hp
Base Power (1st Gear) - Net110.0 hp

Dimensions

Dimensions specifications
Overall Length251 in
Width Over Tires94 in
Height to Top of Isomount Cab115 in

Transmission

Transmission specifications
Max Speed - Forward19.9 mph
Max Speed - Reverse19.9 mph
Transmission TypeHydrostatic

Moldboard

Moldboard specifications
Moldboard Width133 in
Moldboard Thickness1 in
Moldboard Length120 in

Blades

Blades specifications
Maximum Shoulder Reach Outside of Tires - Left3 in
Maximum Shoulder Reach Outside of Tires - Right3 in
Moldboard Sideshift - Left44 in
Moldboard Sideshift - Right44 in

Circle

Circle specifications
Max Reach Outside Tires - Left87 in
Max Reach Outside Tires - Right87 in
Blade Tip Angle - Front45 °
Blade Tip Angle - Rear5 °

Front Axle

Front Axle specifications
Wheel Lean15 °
Oscillation - Total35 °
