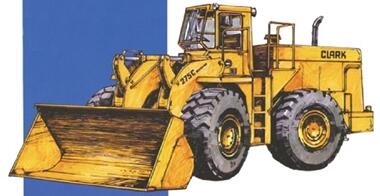

Clark
275C
- Operating Weight
- 88,696 lb
- Bucket Capacity - heaped
- 7.49 yd³
- Gross Power
- 399.7 hp
- Net Power
- 355.4 hp
1 / 5
Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 88,696 lb |
|---|---|
| Fuel Capacity | 165.1 gal |
| Tire Size | 29.5-29 |
| Hydraulic System Fluid Capacity | 136.0 gal |
| Static Tipping Weight | 58,224 lb |
| Operating Voltage | 24 V |
| Turning Radius | 337 in |
| Engine Oil Fluid Capacity | 11.0 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 100 A |
| Front Axle/Diff Fluid Capacity | 16.0 gal |
| Rear Axle/Diff Fluid Capacity | 16.0 gal |
| Cooling System Fluid Capacity | 26.0 gal |
| Transmission Fluid Capacity | 19.0 gal |
Engine
| Engine Model | KT 19 C |
|---|---|
| Displacement | 1,153 in³ |
| Gross Power | 399.7 hp |
| Net Power | 355.4 hp |
Hydraulic System
| Pump Flow Capacity | 117.2 gal/min |
|---|---|
| Raise Time | 10.0 s |
| Lower Time | 6.0 s |
| Dump Time | 2.1 s |
| Relief Valve Setting | 2,500 psi |
| Pump Type | tandem gear type |
Dimensions
| Ground Clearance | 23 in |
|---|---|
| Height - Top of Cab | 155 in |
| Wheelbase | 146 in |
| Width Over Tires | 138 in |
| Reach at Max Lift and Dump | 67 in |
| Length with Bucket on Ground | 413 in |
| Hinge Pin - Max Height | 202 in |
Transmission
| Max Speed - Forward | 21.5 mph |
|---|---|
| Max Speed - Reverse | 21.5 mph |
| Transmission Type | Clark countershaft powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 7.49 yd³ |
|---|---|
| Bucket Capacity - struck | 6.20 yd³ |
| Dump Clearance at Max Raise | 154 in |
| Bucket Width | 143 in |
