Clark
Takeuchi
TW50

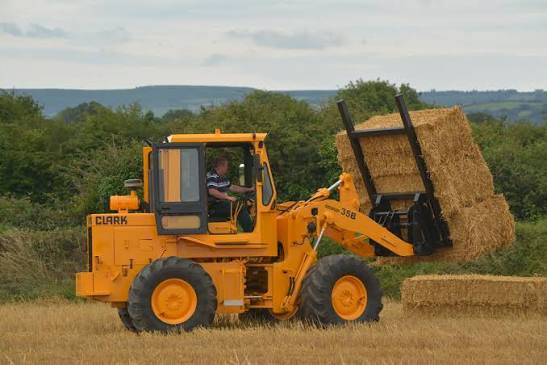

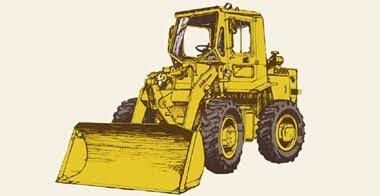

Wheel Loader
35 specifications
1 / 5
Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 14,418 lb |
|---|---|
| Fuel Capacity | 25.1 gal |
| Tire Size | 12.00-24 8PR (L-2) |
| Hydraulic System Fluid Capacity | 21.7 gal |
| Static Tipping Weight | 9,480 lb |
| Operating Voltage | 24 V |
| Turning Radius | 202 in |
| Engine Oil Fluid Capacity | 3.5 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 25 A |
| Front Axle/Diff Fluid Capacity | 3.7 gal |
| Rear Axle/Diff Fluid Capacity | 3.7 gal |
| Cooling System Fluid Capacity | 7.2 gal |
| Transmission Fluid Capacity | 4.5 gal |
Engine
| Engine Model | D500PL |
|---|---|
| Displacement | 304 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 84.0 hp |
| Net Power | 74.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,600 rpm |
Hydraulic System
| Pump Flow Capacity | 32.3 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.4 s |
| Dump Time | 1.1 s |
| Relief Valve Setting | 2,275 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 114 in |
| Wheelbase | 94 in |
| Width Over Tires | 80 in |
| Reach at Max Lift and Dump | 40 in |
| Length with Bucket on Ground | 217 in |
| Hinge Pin - Max Height | 134 in |
Transmission
| Max Speed - Forward | 21.2 mph |
|---|---|
| Max Speed - Reverse | 21.5 mph |
| Transmission Type | countershaft powershift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 1.40 yd³ |
|---|---|
| Bucket Capacity - struck | 1.20 yd³ |
| Dump Clearance at Max Raise | 106 in |
| Breakout Force | 10,656 lb |
| Bucket Width | 84 in |
