Case
21D

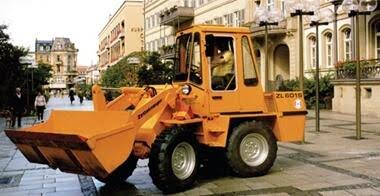

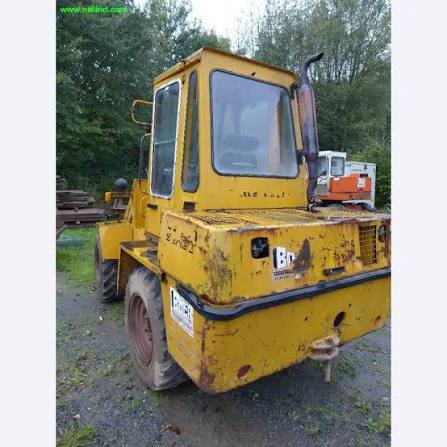

Wheel Loader
43 specifications
1 / 5
Image 1 of 5
Specifications
39 data points
Operating Specifications
| Operating Weight | 9,039 lb |
|---|---|
| Fuel Capacity | 15.9 gal |
| Tire Size | 12.5-20 |
| Hydraulic System Fluid Capacity | 13.3 gal |
| Static Tipping Weight | 5,997 lb |
| Operating Voltage | 12 V |
| Turning Radius | 172 in |
| Engine Oil Fluid Capacity | 2.0 gal |
| Rear Axle Oscillation | 20 ° |
| Alternator Supplied Amperage | 55 A |
| Front Axle/Diff Fluid Capacity | 1.0 gal |
| Rear Axle/Diff Fluid Capacity | 2.0 gal |
Engine
| Engine Model | 3 L 3 30 S |
|---|---|
| Displacement | 130 in³ |
| Power Measured @ | 3,000 rpm |
| Gross Power | 45.0 hp |
| Number of Cylinders | 3 |
| Aspiration | natural |
| Torque Measured @ | 2,100 rpm |
Hydraulic System
| Pump Flow Capacity | 11.1 gal/min |
|---|---|
| Raise Time | 6.5 s |
| Lower Time | 3.0 s |
| Dump Time | 1.8 s |
| Relief Valve Setting | 2,901 psi |
| Pump Type | gear type tandem |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 107 in |
| Wheelbase | 77 in |
| Reach at Max Lift and Dump | 30 in |
| Length with Bucket on Ground | 198 in |
| Hinge Pin - Max Height | 122 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|---|
| Max Speed - Reverse | 12.5 mph |
| Transmission Type | hydrostatic |
Bucket
| Bucket Capacity - heaped | 0.99 yd³ |
|---|---|
| Bucket Capacity - struck | 0.80 yd³ |
| Dump Clearance at Max Raise | 97 in |
| Breakout Force | 8,768 lb |
| Bucket Width | 70 in |
