Daewoo

S010

Mini Excavator

Operating Weight
1,697 lb
Max Digging Depth
61 in
Net Power
9.4 hp
All mini excavators

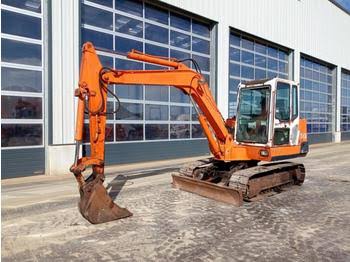

Daewoo S010 Mini Excavator
1 / 5
Image 1 of 5
Image: directindustry.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight1,697 lb
Fuel Capacity2.2 gal
Hydraulic Pump Flow Capacity5.3 gal/min
Hydraulic System Fluid Capacity2.4 gal
Hydraulic System Relief Valve Pressure2,135 psi

Engine

Engine specifications
Engine Model2 TNE 68-DB
Displacement32 in³
Power Measured @2,550 rpm
Net Power9.4 hp

Dimensions

Dimensions specifications
Height - Top of Cab60 in
Length of Track on Ground36 in
Tail Swing Radius32 in
Width to Outside of Tracks32 in
Removal Counterweight Clearance13 in

Undercarriage

Undercarriage specifications
Max Travel Speed1.2 mph
Shoe Size7 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth61 in
Max Loading Height79 in
Shipping Length of Unit110 in
Max Cutting Height111 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
