Airman

AX10U-4

Mini Excavator

Operating Weight
2,161 lb
Max Digging Depth
80 in
Net Power
12.8 hp
All mini excavators

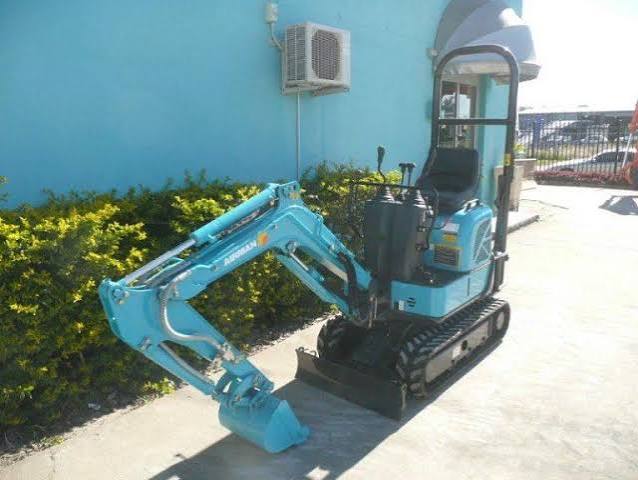

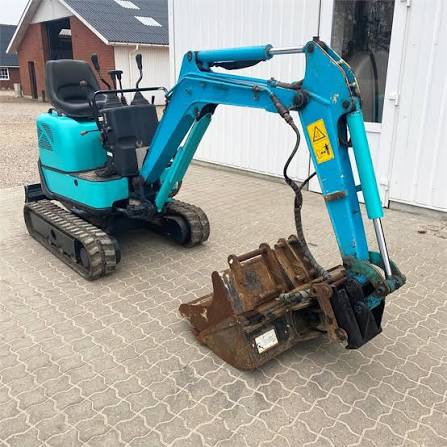

Airman AX10U-4 Mini Excavator
1 / 5
Image 1 of 5
Image: airman.co.jp

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,161 lb
Hydraulic Pump Flow Capacity5.6 gal/min
Hydraulic System Relief Valve Pressure2,611 psi

Engine

Engine specifications
Engine Model3TNV70
Displacement52 in³
Power Measured @2,100 rpm
Net Power12.8 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance6 in
Length of Track on Ground54 in
Tail Swing Radius22 in
Width to Outside of Tracks40 in

Undercarriage

Undercarriage specifications
Max Travel Speed1.3 mph
Shoe Size7 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth80 in
Max Reach Along Ground125 in
Max Vertical Wall Digging Depth66 in
Max Loading Height88 in
Shipping Length of Unit117 in
Shipping Height of Unit57 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³

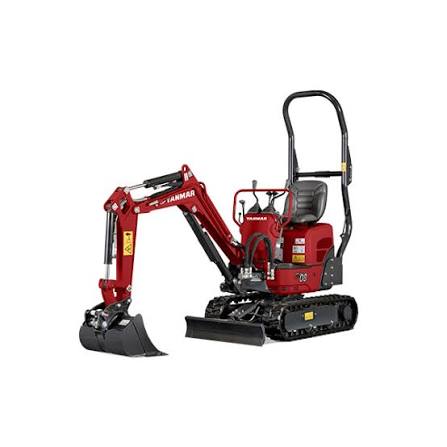

Comparable machines
