Daewoo

S030

Mini Excavator

Operating Weight
6,261 lb
Max Digging Depth
102 in
Net Power
20.2 hp
All mini excavators

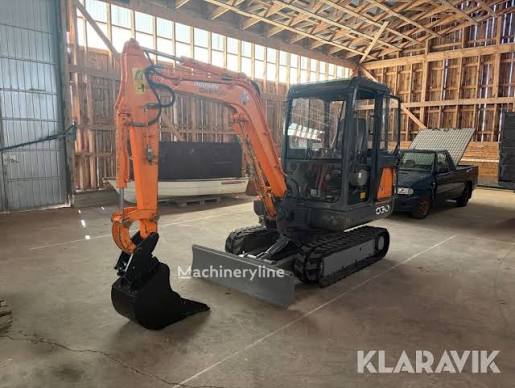

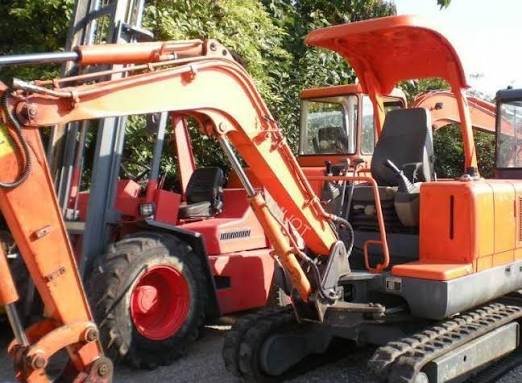

Daewoo S030 Mini Excavator
1 / 5
Image 1 of 5
Image: snabus.ru

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,261 lb
Fuel Capacity11.3 gal
Hydraulic Pump Flow Capacity16.2 gal/min
Hydraulic System Fluid Capacity14.6 gal
Hydraulic System Relief Valve Pressure2,491 psi

Engine

Engine specifications
Engine Model3LBI
Displacement69 in³
Power Measured @2,000 rpm
Net Power20.2 hp

Dimensions

Dimensions specifications
Height - Top of Cab93 in
Length of Track on Ground57 in
Tail Swing Radius54 in
Width to Outside of Tracks59 in

Undercarriage

Undercarriage specifications
Track Gauge47 in
Max Travel Speed2.5 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth102 in
Max Loading Height113 in
Shipping Length of Unit174 in
Max Cutting Height166 in
Shipping Height of Unit93 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
