Doosan

DL200-5

Wheel Loader

Operating Weight
25,794 lb
Bucket Capacity - heaped
2.69 yd³
Gross Power
142.0 hp
Net Power
142.0 hp
All wheel loaders

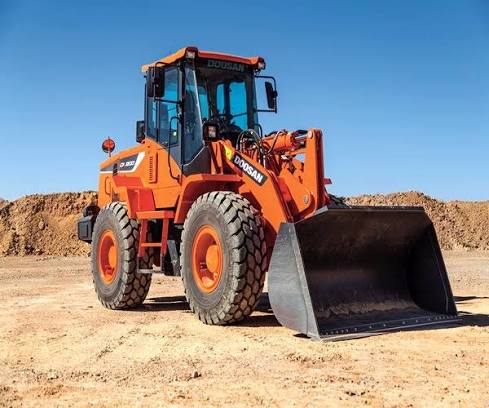

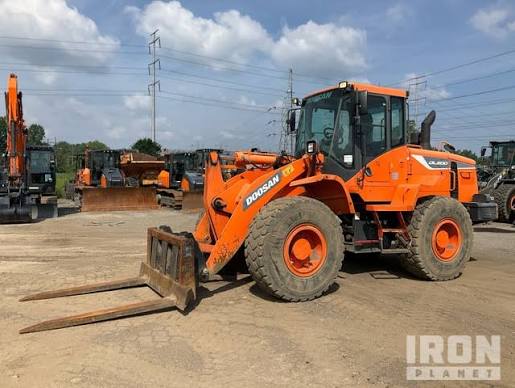

Doosan DL200-5 Wheel Loader
1 / 5
Image 1 of 5
Image: mdx.vn

Specifications

54 data points

Operating Specifications

Operating Specifications specifications
Operating Weight25,794 lb
Tire Size20.5-R25 (L3)
Static Tipping Weight21,076 lb
Operating Voltage28 V
Front Axle/Diff Fluid Capacity4.0 gal
Rear Axle/Diff Fluid Capacity3.5 gal
Rated Bucket Capacity2.60 yd³

Engine

Engine specifications
Engine Model1204F
Displacement269 in³
Power Measured @2,200 rpm
Gross Power142.0 hp
Net Power142.0 hp
Number of Cylinders4
Torque Measured @1,400 rpm
Engine MakePerkins
MakePerkins
Stroke5 in
Bore4 in
Alternator85 A
Net Torque413 lb-ft
Starter7.4 hp

Weights

Weights specifications
Operating Weight25,794 lb

Hydraulic System

Hydraulic System specifications
Raise Time5.7 s
Lower Time3.6 s
Dump Time1.6 s
Relief Valve Pressure3,190 psi

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheelbase115 in
Overall Length282 in
Width Over Tires101 in
Reach at Max Lift and Dump41 in
Hinge Pin - Max Height148 in
Overall Height130 in
Digging Depth2 in

Transmission

Transmission specifications
Max Speed - Forward24.0 mph
Max Speed - Reverse12.0 mph

Fluid Capacities

Fluid Capacities specifications
Fuel Tank45.0 gal
Hydraulic system34.1 gal
Engine Oil2.8 gal
Cooling system8.5 gal
Diesel exhaust fluid (DEF) tank5.0 gal

Bucket

Bucket specifications
Bucket Capacity - heaped2.69 yd³
Dump Clearance at Max Raise114 in
Breakout Force22,480 lb
Bucket Width101 in

General Specifications

General Specifications specifications
Operating Weight25,794 (11,700) — Starting 2019 Model Year
Operating Weight lbs (kg)25,794 (11,700) — Starting 2016 Model Year
Bucket Capacity2.6 (2.0) — Starting 2019 Model Year
Bucket Capacity cu. yd. (cu m)2.6 (2.0) — Starting 2016 Model Year
Engine typePerkins — Starting 2019 Model Year
Engine Power142 (106) — Starting 2019 Model Year
Max Dump Height9.0 (2.7) — Starting 2021 Model Year
Max Dump Height ft.( m)9.5 (2.89) — Starting 2016 Model Year
Engine Power HP (KW)142 (106) — Starting 2016 Model Year
