Doosan
Tata Hitachi
TWL3036

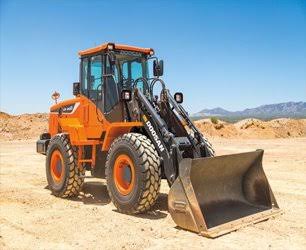

Wheel Loader
41 specifications
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 25,530 lb |
|---|---|
| Fuel Capacity | 64.2 gal |
| Tire Size | 20.5R25 |
| Hydraulic System Fluid Capacity | 30.4 gal |
| Operating Voltage | 24 V |
| Turning Radius | 205 in |
| Rear Axle Oscillation | 11 ° |
| Cooling System Fluid Capacity | 10.6 gal |
| Transmission Fluid Capacity | 8.0 gal |
| Engine Oil Capacity | 7.2 gal |
| Static Tipping Load - Bucket | 19,092 lb |
| Front Diff Fluid Capacity | 5.2 gal |
| Rear Diff Fluid Capacity | 4.9 gal |
| Static Tipping Load - Forks | 14,310 lb |
Engine
| Engine Model | DL06 |
|---|---|
| Displacement | 360 in³ |
| Gross Power | 143.0 hp |
| Net Power | 137.0 hp |
| Aspiration | turbo compressor and air to air cooling |
| Max Torque | 506 lb-ft |
Hydraulic System
| Raise Time | 5.8 s |
|---|---|
| Lower Time | 4.1 s |
| Dump Time | 1.1 s |
| Relief Valve Setting | 2,901 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 128 in |
| Wheelbase | 115 in |
| Width Over Tires | 97 in |
| Length w/ Bucket on Ground | 289 in |
| Dump Clearance at Max Lift | 104 in |
| Reach at Max Height and Dump | 40 in |
| Max Lift Height | 138 in |
| Length with out Forks on Ground | 302 in |
Transmission
| Max Speed - Forward | 21.8 mph |
|---|---|
| Max Speed - Reverse | 15.6 mph |
| Transmission Type | powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - struck | 2.50 yd³ |
|---|---|
| Breakout Force | 23,149 lb |
