Doosan

DX225LL-5

Log Loader

Operating Weight
68,784 lb
Displacement
359 in³
Net Power
162.3 hp
All log loaders

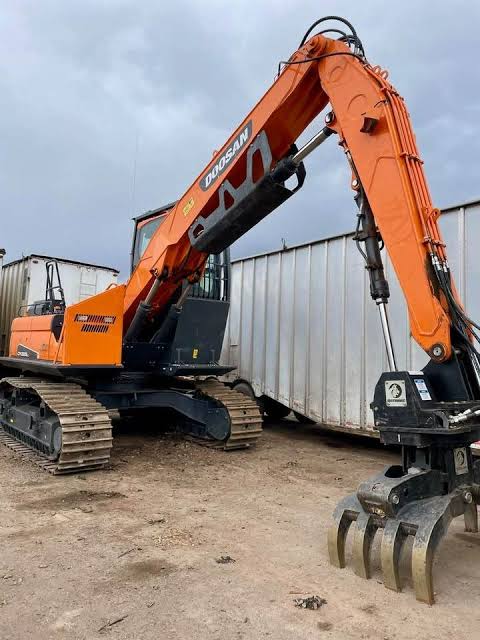

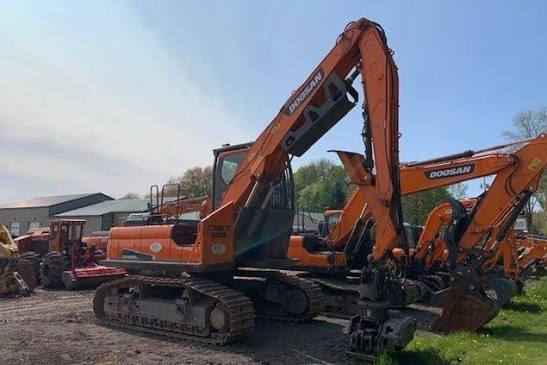

Doosan DX225LL-5 Log Loader
1 / 5
Image 1 of 5
Image: lumbermenonline.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight68,784 lb
Fuel Capacity265.8 gal
Hydraulic System Fluid Capacity74.0 gal
Cooling System Fluid Capacity8.0 gal
Engine Oil Capacity7.2 gal
Swing Drive Fluid Capacity1.4 gal
DEF tank capacity8.4 gal

Engine

Engine specifications
Engine ModelDL06P
Displacement359 in³
Net Power162.3 hp
Number of Cylinders6
Bore4 in
Stroke5 in
Alternator80 A
Air cleanerDouble Elements
Battery150 AH
Net Torque557 lb-ft
Starter8.1 hp
Gross horsepower166.3 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity112.8 gal/min
Relief Valve Pressure4,694 psi

Dimensions

Dimensions specifications
Ground Clearance29 in
Height - Top of Cab182 in
Overall Width143 in
Length of Track on Ground546 in
Tail Swing Radius125 in

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Counterweight, Standard9,700 lb
Rollers And Idlers2

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
Swing Torque69,622 lb-ft

Boom/Stick Log Loader Option 1

Boom/Stick Log Loader Option 1 specifications
Max Height506 in
Max Reach at Ground Level425,001 in
Shipping Height139 in
Boom/Stick Option (LGL) 1Boom - 20 ft 2 in / Arm - 12 ft
Shipping Length546 in
Max Depth Below Ground137 in
