Tigercat

T234

Log Loader

Operating Weight
52,492 lb
Max Lift Capacity Over Front at Ground Level
32,500 lb
Net Power
173.0 hp
All log loaders

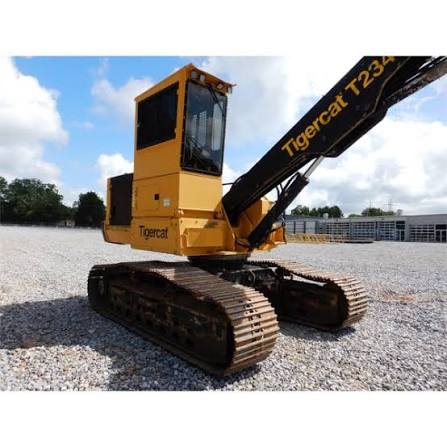

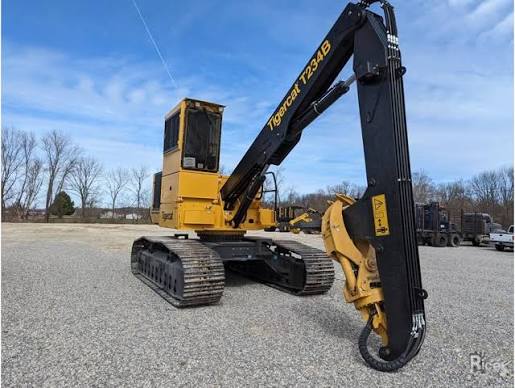

Tigercat T234 Log Loader
1 / 5
Image 1 of 5
Image: tigercat.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight52,492 lb
Fuel Capacity79.3 gal
Hydraulic System Fluid Capacity60.0 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelQSB6.7 Tier III
Power Measured @1,800 rpm
Net Power173.0 hp

Hydraulic System

Hydraulic System specifications
Pump Typeload sensing variable displacement piston

Dimensions

Dimensions specifications
Ground Clearance30 in
Overall Width135 in
Tail Swing Radius120 in

Undercarriage

Undercarriage specifications
Shoe Size30 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Log Loader Option 1

Boom/Stick Log Loader Option 1 specifications
Max Lift Capacity Over Front at Ground Level32,500 lb
Max Height300 in
Max Reach at Ground Level384 in
Shipping Height170 in
