Doosan

S225LL

Log Loader

Operating Weight
60,500 lb
Max Lift Capacity Over Front at Ground Level
26,480 lb
Net Power
148.0 hp
All log loaders

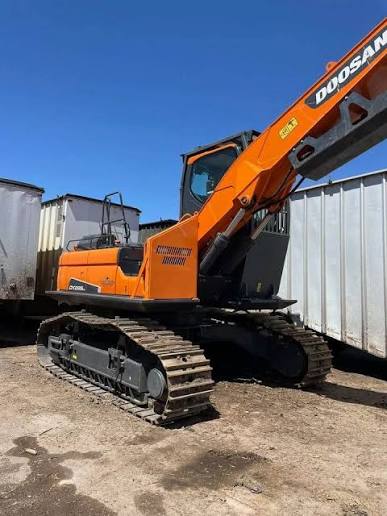

Doosan S225LL Log Loader
1 / 5
Image 1 of 5
Image: lumbermenonline.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight60,500 lb

Engine

Engine specifications
Engine ModelDB58TIS
Power Measured @2,000 rpm
Net Power148.0 hp

Hydraulic System

Hydraulic System specifications
Pump Typeaxial piston
Pump Flow Capacity112.1 gal/min
Relief Valve Pressure4,690 psi

Dimensions

Dimensions specifications
Ground Clearance28 in
Overall Width138 in
Length of Track on Ground144 in
Tail Swing Radius109 in

Undercarriage

Undercarriage specifications
Shoe Size24 in
Max Speed3.4 mph

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Log Loader Option 1

Boom/Stick Log Loader Option 1 specifications
Max Lift Capacity Over Front at Ground Level26,480 lb
Shipping Height179 in
Boom/Stick Option (LGL) 1Boom 20'2 (6150mm)/Stick 12'0 (3660mm)
Shipping Length198 in
