Doosan

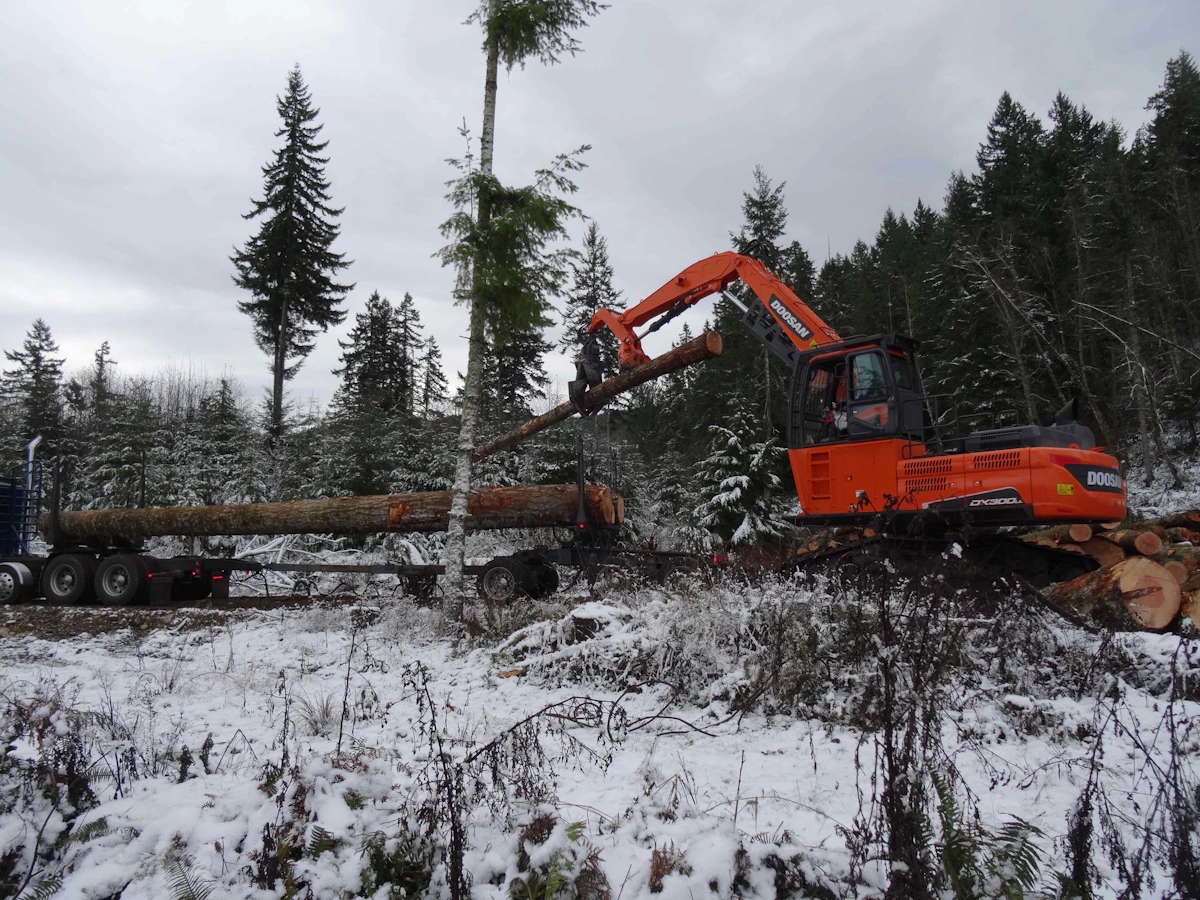

S300LL
- Operating Weight
- 78,600 lb
- Max Lift Capacity Over Front at Ground Level
- 28,570 lb
- Net Power
- 197.0 hp
1 / 5
Image 1 of 5
Specifications
18 data points
Operating Specifications
| Operating Weight | 78,600 lb |
|---|
Engine
| Engine Model | DE08TIS |
|---|---|
| Power Measured @ | 1,900 rpm |
| Net Power | 197.0 hp |
Hydraulic System
| Pump Type | axial piston pump |
|---|---|
| Pump Flow Capacity | 130.0 gal/min |
| Relief Valve Pressure | 4,690 psi |
Dimensions
| Ground Clearance | 31 in |
|---|---|
| Overall Width | 143 in |
| Length of Track on Ground | 158 in |
| Tail Swing Radius | 126 in |
Undercarriage
| Shoe Size | 28 in |
|---|---|
| Max Speed | 3.2 mph |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Log Loader Option 1
| Max Lift Capacity Over Front at Ground Level | 28,570 lb |
|---|---|
| Shipping Height | 185 in |
| Boom/Stick Option (LGL) 1 | Boom 20'8 (6300mm)/Stick 12'10 (3910mm) |
| Shipping Length | 578 in |

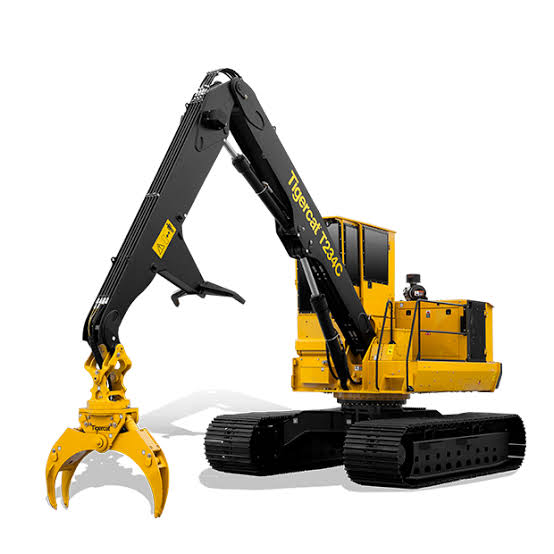

Comparable machines
