John Deere

2554

Log Loader

Operating Weight
83,370 lb
Max Lift Capacity Over Front at Ground Level
28,440 lb
Displacement
414 in³
Net Power
177.1 hp
All log loaders

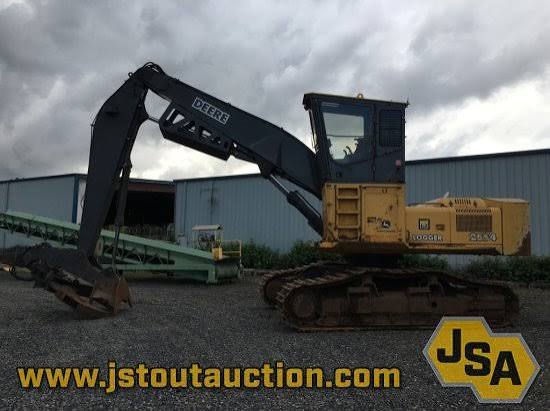

John Deere 2554 Log Loader
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

41 data points

Operating Specifications

Operating Specifications specifications
Operating Weight83,370 lb
Fuel Capacity269.0 gal
Hydraulic System Fluid Capacity34.0 gal
Operating Voltage24 V
Alternator Supplied Amperage45 A
Cooling System Fluid Capacity6.3 gal
Engine Oil Capacity5.1 gal

Engine

Engine specifications
Engine Model6068H
Displacement414 in³
Power Measured @2,100 rpm
Net Power177.1 hp
Number of Cylinders6
Net Torque533 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Typevariable axial-piston
Pump Flow Capacity115.8 gal/min
Relief Valve Pressure4,980 psi

Dimensions

Dimensions specifications
Ground Clearance29 in
Height - Top of Cab150 in
Overall Width144 in
Tail Swing Radius128 in

Undercarriage

Undercarriage specifications
Ground Pressure10 psi
Track Gauge115 in
Shoe Size28 in
Max Speed3.5 mph
Max Drawbar Pull44,421 lb

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm
Swing Torque79,559 lb-ft

Boom/Stick Log Loader Option 1

Boom/Stick Log Loader Option 1 specifications
Max Lift Capacity Over Front at Ground Level28,440 lb
Max Height558 in
Max Reach at Ground Level480 in
Shipping Height135 in
Boom/Stick Option (LGL) 1live-heel
Shipping Length554 in
Max Depth Below Ground204 in

Boom/Stick Log Loader Option 2

Boom/Stick Log Loader Option 2 specifications
Max Lift Capacity Over Front at Ground Level29,542 lb
Boom/Stick Option (LGL) 2articulating grapple
Max Depth Below Ground204 in
Max Height509 in
Max Reach at Ground Level432 in
Shipping Height135 in
Shipping Length554 in
