Doosan

DX380LL-5

Log Loader

Operating Weight
113,538 lb
Displacement
568 in³
Net Power
313.0 hp
All log loaders

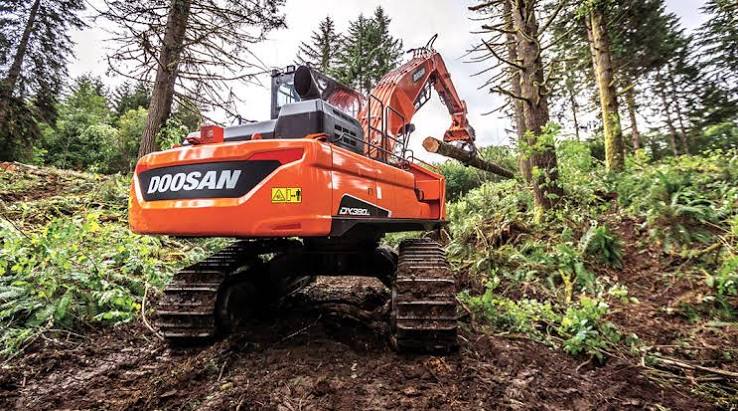

Doosan DX380LL-5 Log Loader
1 / 5
Image 1 of 5
Image: crowleyequipment.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight113,538 lb
Fuel Capacity158.6 gal
Hydraulic System Fluid Capacity118.9 gal
Cooling System Fluid Capacity14.2 gal
Engine Oil Capacity9.6 gal
Swing Drive Fluid Capacity2.2 gal
DEF tank capacity18.5 gal

Engine

Engine specifications
Engine ModelDC09
Displacement568 in³
Power Measured @1,800 rpm
Net Power313.0 hp
Number of Cylinders5
Bore5 in
Stroke6 in
Alternator100 A
Air cleanerDouble Elements
Battery12 V
Net Torque976 lb-ft
Starter8.0 hp
Gross horsepower318.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity190.2 gal/min
Relief Valve Pressure5,511 psi

Dimensions

Dimensions specifications
Ground Clearance30 in
Height - Top of Cab189 in
Overall Width144 in
Length of Track on Ground660 in
Tail Swing Radius139 in

Undercarriage

Undercarriage specifications
Ground Pressure13 psi
Counterweight, Standard18,739 lb
Rollers And Idlers2

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm
Swing Torque129,874 lb-ft

Boom/Stick Log Loader Option 1

Boom/Stick Log Loader Option 1 specifications
Max Height591 in
Max Reach at Ground Level520,158 in
Shipping Height139 in
Boom/Stick Option (LGL) 1Boom - 23 ft 4 in / Arm 15 ft 7 in
Shipping Length660 in
Max Depth Below Ground165 in
