John Deere

3554

Log Loader

Operating Weight
99,241 lb
Max Lift Capacity Over Front at Ground Level
39,904 lb
Displacement
496 in³
Net Power
245.5 hp
All log loaders

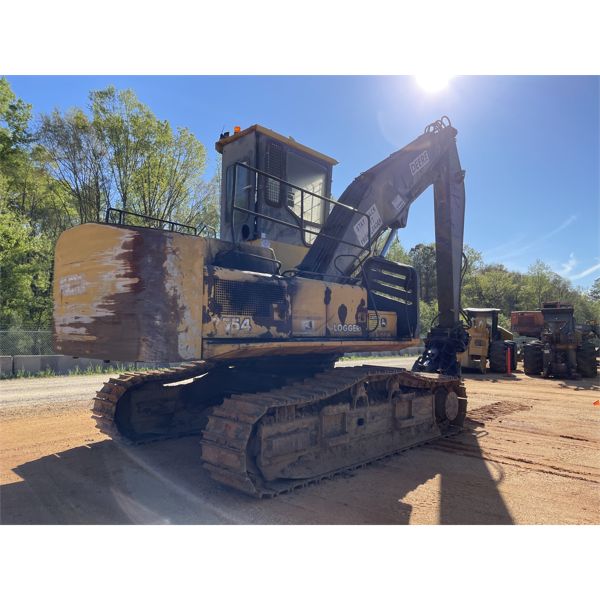

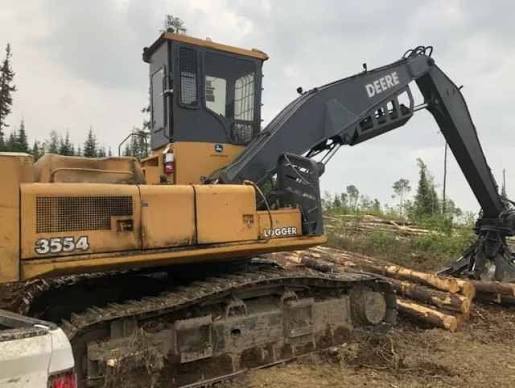

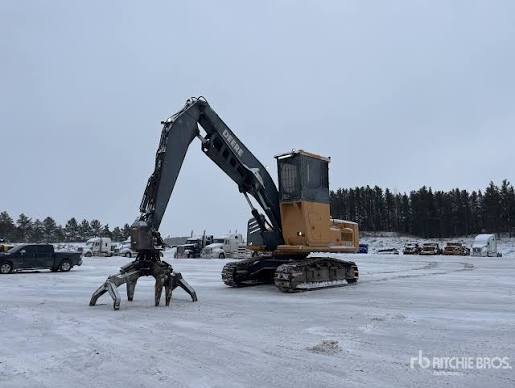

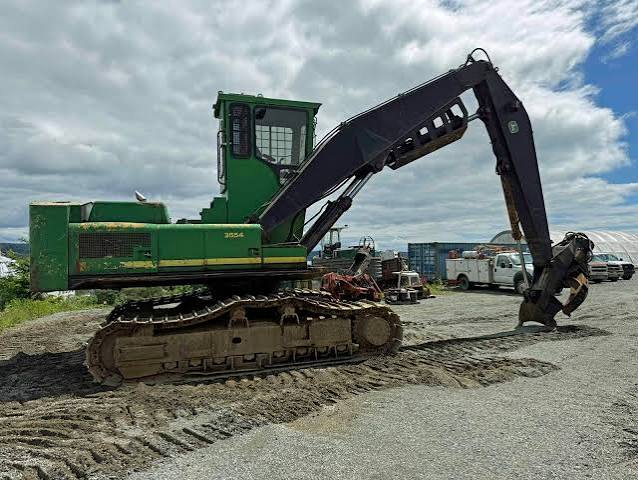

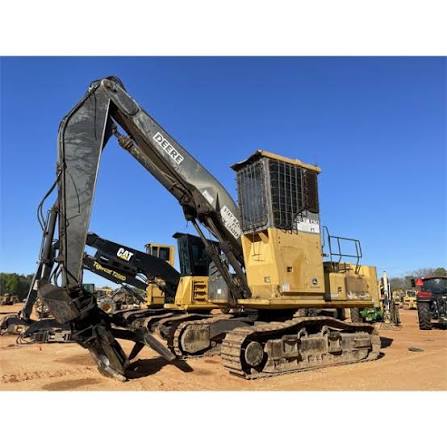

John Deere 3554 Log Loader
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight99,241 lb
Fuel Capacity269.0 gal
Hydraulic System Fluid Capacity85.1 gal
Operating Voltage24 V
Alternator Supplied Amperage45 A
Cooling System Fluid Capacity14.7 gal
Engine Oil Capacity8.0 gal

Engine

Engine specifications
Engine Model6081H
Displacement496 in³
Power Measured @2,000 rpm
Net Power245.5 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,100 rpm
Net Torque940 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Typevariable axial-piston
Pump Flow Capacity153.8 gal/min
Relief Valve Pressure5,050 psi

Dimensions

Dimensions specifications
Ground Clearance29 in
Height - Top of Cab216 in
Overall Width143 in
Length of Track on Ground159 in
Tail Swing Radius141 in

Undercarriage

Undercarriage specifications
Ground Pressure10 psi
Track Gauge115 in
Shoe Size28 in
Max Speed3.5 mph
Max Drawbar Pull56,075 lb

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm
Swing Torque82,862 lb-ft

Boom/Stick Log Loader Option 1

Boom/Stick Log Loader Option 1 specifications
Max Lift Capacity Over Front at Ground Level39,904 lb
Max Height594 in
Max Reach at Ground Level516 in
Shipping Height141 in
Boom/Stick Option (LGL) 1live-heel
Shipping Length656 in
Max Depth Below Ground292 in

Boom/Stick Log Loader Option 2

Boom/Stick Log Loader Option 2 specifications
Max Lift Capacity Over Front at Ground Level40,345 lb
Boom/Stick Option (LGL) 2articulating grapple
Max Depth Below Ground209 in
Max Height544 in
Max Reach at Ground Level469 in
Shipping Height141 in
Shipping Length622 in
