Doosan

DX27Z

Mini Excavator

Operating Weight
6,150 lb
Max Digging Depth
98 in
Net Power
21.2 hp
All mini excavators

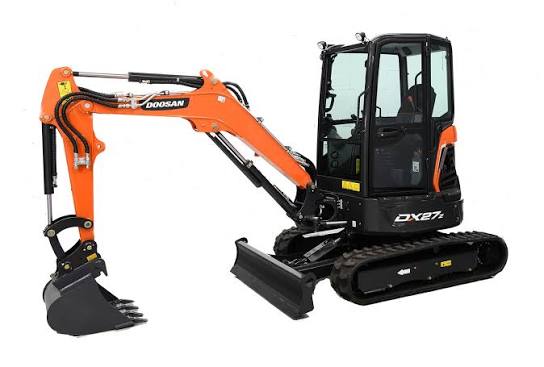

Doosan DX27Z Mini Excavator
1 / 5
Image 1 of 5
Image: canmaxcn.en.made-in-china.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,150 lb
Fuel Capacity8.0 gal
Hydraulic Pump Flow Capacity14.0 gal/min
Hydraulic System Fluid Capacity11.9 gal
Hydraulic System Relief Valve Pressure3,118 psi
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Capacity1.5 gal
Cooling System Fluid Capacity1.0 gal

Engine

Engine specifications
Engine ModelETNV82A-SDB
Displacement81 in³
Power Measured @2,200 rpm
Net Power21.2 hp
Number of Cylinders3
Torque Measured @1,000 rpm
Max Torque65 lb-ft

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab97 in
Length of Track on Ground61 in
Tail Swing Radius30 in
Width to Outside of Tracks62 in
Removal Counterweight Clearance22 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge50 in
Number of Track Rollers per Side3
Max Travel Speed2.7 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth98 in
Max Vertical Wall Digging Depth91 in
Max Loading Height110 in
Shipping Length of Unit161 in
Max Cutting Height165 in
Shipping Height of Unit59 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth107 in
Max Cutting Height169 in
Max Loading Height117 in
Max Vertical Wall Digging Depth100 in
