Doosan

DX30Z

Mini Excavator

Operating Weight
7,011 lb
Max Digging Depth
113 in
Net Power
24.3 hp
All mini excavators

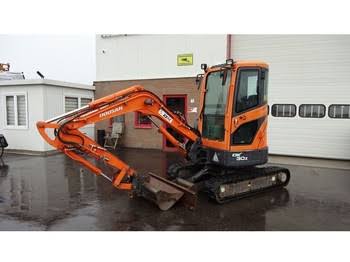

Doosan DX30Z Mini Excavator
1 / 5
Image 1 of 5
Image: product.global-ce.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,011 lb
Fuel Capacity9.3 gal
Hydraulic Pump Flow Capacity19.7 gal/min
Hydraulic System Fluid Capacity13.3 gal
Hydraulic System Relief Valve Pressure2,973 psi
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Capacity1.5 gal
Cooling System Fluid Capacity1.0 gal

Engine

Engine specifications
Engine Model3TNV82A-PDB
Displacement81 in³
Power Measured @2,400 rpm
Net Power24.3 hp
Number of Cylinders3
Torque Measured @1,200 rpm
Max Torque65 lb-ft

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab98 in
Length of Track on Ground66 in
Tail Swing Radius31 in
Width to Outside of Tracks61 in
Removal Counterweight Clearance22 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge50 in
Number of Track Rollers per Side4
Max Travel Speed2.9 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth113 in
Max Vertical Wall Digging Depth90 in
Max Loading Height124 in
Shipping Length of Unit178 in
Max Cutting Height180 in
Shipping Height of Unit64 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth117 in
Max Cutting Height182 in
Max Loading Height126 in
Max Vertical Wall Digging Depth95 in
