Doosan

DX35Z

Mini Excavator

Operating Weight
8,069 lb
Max Digging Depth
120 in
Gross Power
27.2 hp
Net Power
26.1 hp
All mini excavators

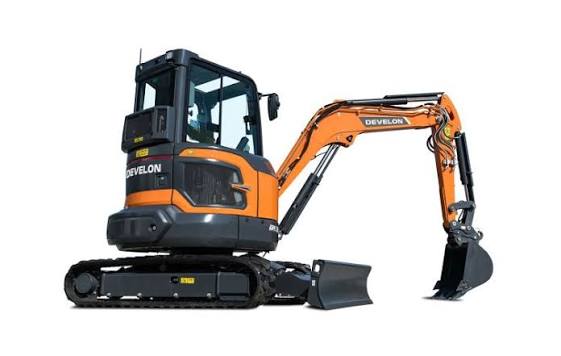

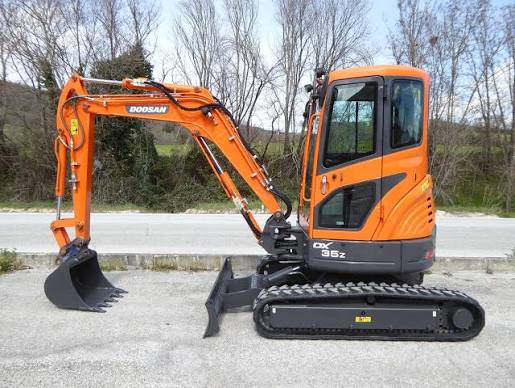

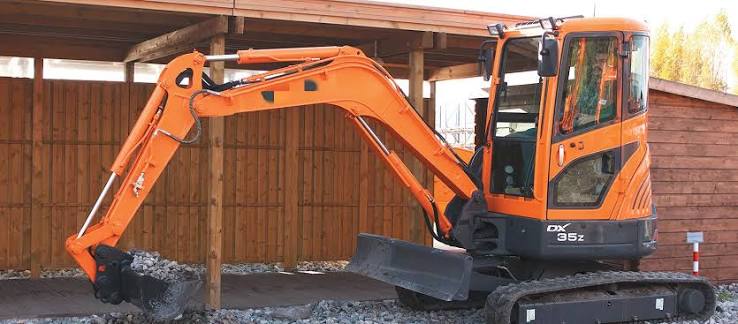

Doosan DX35Z Mini Excavator
1 / 5
Image 1 of 5
Image: agriexpo.online

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,069 lb
Fuel Capacity11.1 gal
Hydraulic Pump Flow Capacity20.4 gal/min
Hydraulic System Fluid Capacity11.9 gal
Hydraulic System Relief Valve Pressure3,263 psi
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Capacity1.7 gal
Cooling System Fluid Capacity1.4 gal

Engine

Engine specifications
Engine Model3TNV88
Displacement100 in³
Power Measured @2,200 rpm
Gross Power27.2 hp
Net Power26.1 hp
Number of Cylinders3
Torque Measured @1,200 rpm
Max Torque81 lb-ft

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab100 in
Length of Track on Ground67 in
Tail Swing Radius42 in
Width to Outside of Tracks67 in
Removal Counterweight Clearance23 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge55 in
Number of Track Rollers per Side4
Max Travel Speed2.9 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth120 in
Max Vertical Wall Digging Depth101 in
Max Loading Height132 in
Shipping Length of Unit183 in
Max Cutting Height191 in
Shipping Height of Unit69 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth125 in
Max Cutting Height193 in
Max Loading Height134 in
Max Vertical Wall Digging Depth104 in
