Komatsu
PC20R-8
Mini Excavator
47 specifications
1 / 5
Image 1 of 5
Specifications
36 data points
Operating Specifications
| Operating Weight | 7,240 lb |
|---|---|
| Fuel Capacity | 9.3 gal |
| Hydraulic Pump Flow Capacity | 9.8 gal/min |
| Hydraulic System Fluid Capacity | 16.4 gal |
| Hydraulic System Relief Valve Pressure | 2,840 psi |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 35 A |
| Engine Oil Capacity | 1.7 gal |
| Cooling System Fluid Capacity | 1.9 gal |
Engine
| Engine Model | 3LD1 |
|---|---|
| Displacement | 90 in³ |
| Power Measured @ | 1,950 rpm |
| Gross Power | 24.8 hp |
| Net Power | 24.1 hp |
| Number of Cylinders | 3 |
| Aspiration | natural |
| Torque Measured @ | 1,700 rpm |
| Max Torque | 69 lb-ft |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Height - Top of Cab | 93 in |
| Length of Track on Ground | 66 in |
| Tail Swing Radius | 55 in |
| Width to Outside of Tracks | 60 in |
| Removal Counterweight Clearance | 22 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Track Gauge | 48 in |
| Number of Track Rollers per Side | 4 |
| Shoe Size | 12 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 124 in |
|---|---|
| Max Reach Along Ground | 196 in |
| Max Vertical Wall Digging Depth | 91 in |
| Max Loading Height | 137 in |
| Shipping Length of Unit | 198 in |
| Max Cutting Height | 196 in |
| Shipping Height of Unit | 65 in |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|

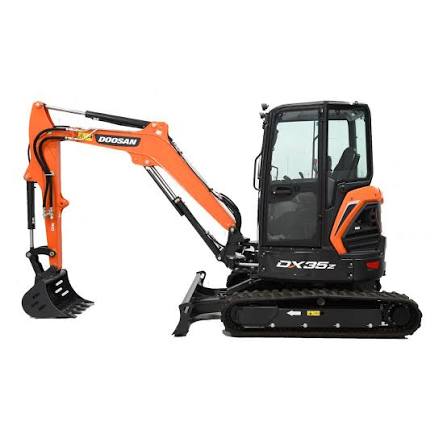

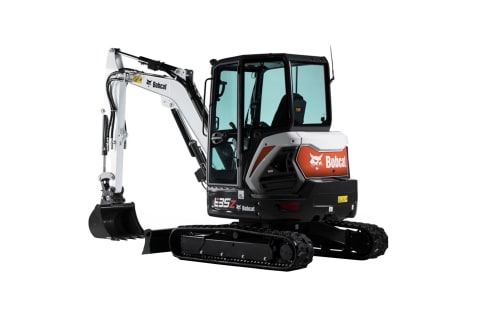

Comparable machines
