Doosan

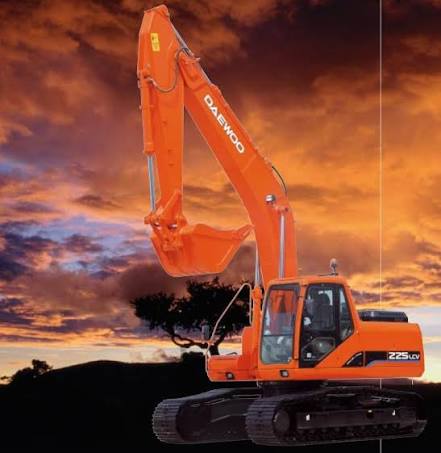

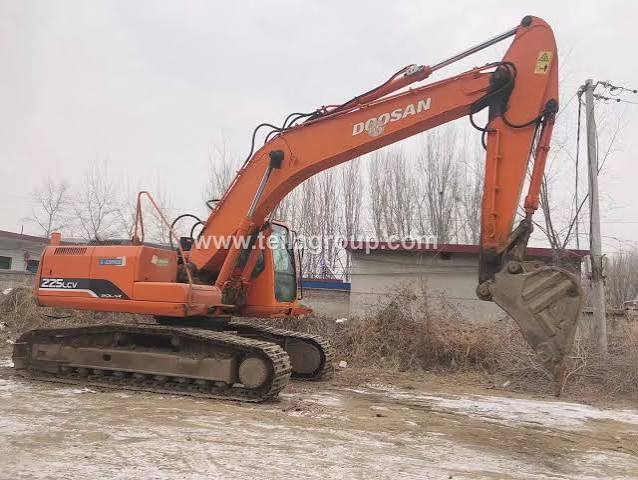

SOLAR 225LC-V
- Operating Weight
- 47,400 lb
- Max Digging Depth
- 261 in
- Max Digging Depth
- 241 in
- Net Power
- 148.0 hp
1 / 5
Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 47,400 lb |
|---|---|
| Fuel Capacity | 92.5 gal |
| Hydraulic Pump Flow Capacity | 113.6 gal/min |
| Hydraulic System Fluid Capacity | 63.5 gal |
| Hydraulic System Relief Valve Pressure | 4,690 psi |
| Engine Oil Capacity | 5.1 gal |
| Cooling System Fluid Capacity | 11.1 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.4 gal |
Engine
| Engine Model | DB58TIS |
|---|---|
| Displacement | 353 in³ |
| Power Measured @ | 1,950 rpm |
| Net Power | 148.0 hp |
| Aspiration | turbocharged air-to-air intercooled |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 445 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 119 in |
| Length of Track on Ground | 144 in |
| Tail Swing Radius | 109 in |
| Width to Outside of Tracks | 119 in |
| Removal Counterweight Clearance | 44 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 261 in |
|---|---|
| Max Reach Along Ground | 384 in |
| Max Loading Height | 269 in |
| Max Vertical Wall Digging Depth | 239 in |
| Max Cutting Height | 380 in |
Bucket
| Reference Bucket Capacity | 1.70 yd³ |
|---|
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 241 in |
|---|---|
| Max Vertical Wall Digging Depth | 238 in |
| Max Cutting Height | 388 in |
| Max Loading Height | 271 in |
| Max Reach Along Ground | 371 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 285 in |
|---|---|
| Max Cutting Height | 389 in |
| Max Loading Height | 277 in |
| Max Vertical Wall Digging Depth | 259 in |
| Max Reach Along Ground | 403 in |
