Doosan

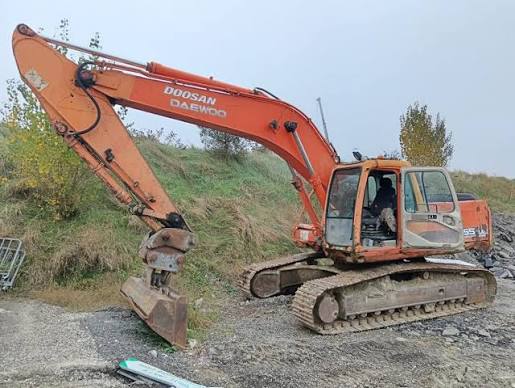

SOLAR 255LC-V
- Operating Weight
- 54,200 lb
- Max Digging Depth
- 268 in
- Max Digging Depth
- 248 in
- Net Power
- 162.0 hp
1 / 5
Image 1 of 5
Specifications
48 data points
Operating Specifications
| Operating Weight | 54,200 lb |
|---|---|
| Fuel Capacity | 97.8 gal |
| Hydraulic Pump Flow Capacity | 118.4 gal/min |
| Hydraulic System Fluid Capacity | 76.7 gal |
| Hydraulic System Relief Valve Pressure | 4,690 psi |
| Engine Oil Capacity | 5.1 gal |
| Cooling System Fluid Capacity | 9.6 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.0 gal |
Engine
| Engine Model | DB58TIS |
|---|---|
| Displacement | 353 in³ |
| Power Measured @ | 1,950 rpm |
| Net Power | 162.0 hp |
| Aspiration | turbocharged air-to-air intercooled |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 491 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 119 in |
| Length of Track on Ground | 151 in |
| Tail Swing Radius | 120 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 44 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 103 in |
| Number of Track Rollers per Side | 10 |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 51 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 268 in |
|---|---|
| Max Reach Along Ground | 397 in |
| Max Loading Height | 261 in |
| Max Vertical Wall Digging Depth | 240 in |
| Max Cutting Height | 374 in |
Bucket
| Reference Bucket Capacity | 1.50 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.70 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 248 in |
|---|---|
| Max Vertical Wall Digging Depth | 211 in |
| Max Cutting Height | 362 in |
| Max Loading Height | 251 in |
| Max Reach Along Ground | 377 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 288 in |
|---|---|
| Max Cutting Height | 383 in |
| Max Loading Height | 271 in |
| Max Vertical Wall Digging Depth | 259 in |
| Max Reach Along Ground | 415 in |
