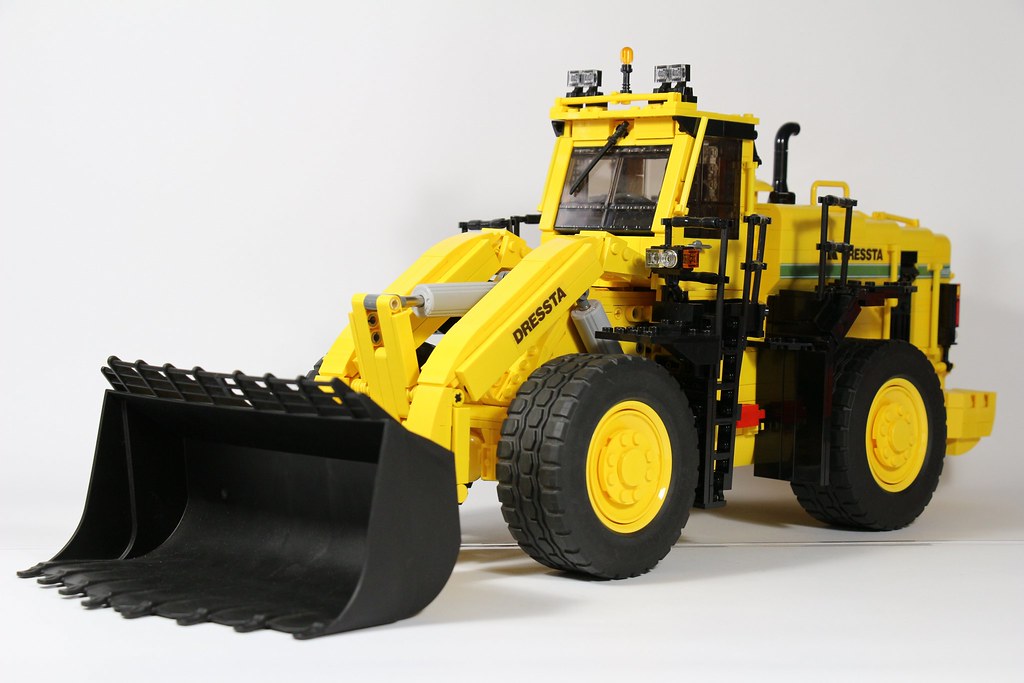

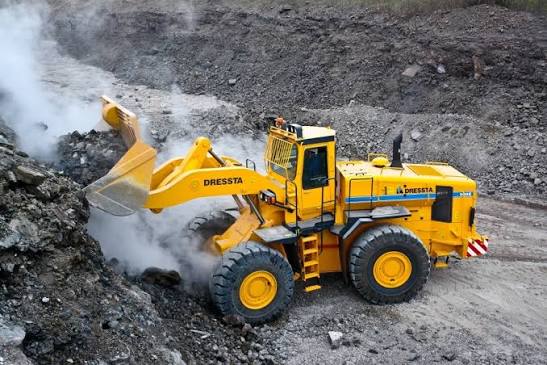

Dressta
560E
- Operating Weight
- 92,549 lb
- Bucket Capacity - heaped
- 7.49 yd³
- Gross Power
- 450.0 hp
- Net Power
- 427.0 hp
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 92,549 lb |
|---|---|
| Fuel Capacity | 185.0 gal |
| Tire Size | 29.5x2934PR(L-3) |
| Hydraulic System Fluid Capacity | 54.0 gal |
| Static Tipping Weight | 72,029 lb |
| Operating Voltage | 12 V |
| Turning Radius | 341 in |
| Engine Oil Fluid Capacity | 13.0 gal |
| Rear Axle Oscillation | 23 ° |
| Alternator Supplied Amperage | 80 A |
| Cooling System Fluid Capacity | 21.7 gal |
| Transmission Fluid Capacity | 38.0 gal |
Engine
| Engine Model | QSX15 |
|---|---|
| Displacement | 912 in³ |
| Power Measured @ | 1,400 rpm |
| Gross Power | 450.0 hp |
| Net Power | 427.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged and CAC |
| Torque Measured @ | 2,000 rpm |
Hydraulic System
| Pump Flow Capacity | 140.0 gal/min |
|---|---|
| Raise Time | 9.1 s |
| Lower Time | 5.6 s |
| Dump Time | 2.8 s |
| Relief Valve Setting | 1,000 psi |
| Pump Type | Gear driven from torque converter |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 162 in |
| Width Over Tires | 102 in |
| Length with Bucket on Ground | 388 in |
| Hinge Pin - Max Height | 199 in |
Transmission
| Max Speed - Forward | 20.2 mph |
|---|---|
| Max Speed - Reverse | 20.2 mph |
| Transmission Type | Electrically controlled full soft shift transmission driven by a double universal joint from the torque converter |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 7.49 yd³ |
|---|---|
| Bucket Capacity - struck | 6.10 yd³ |
| Dump Clearance at Max Raise | 138 in |
| Breakout Force | 71,419 lb |
| Bucket Width | 144 in |
