Dynapac

CA1500PD

Padfoot Compactor

Operating Weight
17,000 lb
Max Speed
7.5 mph
Drum Width
66 in
Gross Power
99.3 hp
All padfoot compactors

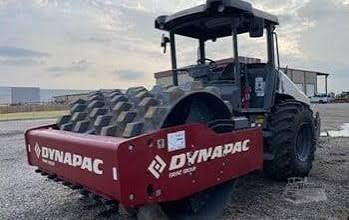

Dynapac CA1500PD Padfoot Compactor
1 / 5
Image 1 of 5
Image: asphaltcare.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,000 lb
Operating weight ROPS15,500 lb
Max Speed7.5 mph
Fuel Capacity50.0 gal
Tire Size14.9 x 24 TL

Engine

Engine specifications
Engine ModelQSB3.3
Power Measured @2,200 rpm
Gross Power99.3 hp
Engine MakeCummins
Engine TypeWater cooled turbo Diesel

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase106 in
Overall Length17 in
Overall Width54 in
Height - Top of ROPS/FOPS108 in
Turning Radius - Inside120 in
Gradeability55.0 %
Turning Radius - Outside192 in
Curb clearance14 in
Overhang Rear5 in
Overhang Front5 in

Drum

Drum specifications
Drum Width66 in
Centrifugal Force - High29,900 lb
Drum Diameter48 in
Nominal Amplitude - High0 in
Pad Height3 in
Centrifugal Force - Low16,200 lb
Nominal Amplitude - Low0 in
Pad Surface Area13 in³
Drum thickness1 in
