Dynapac

CA152PD

Padfoot Compactor

Operating Weight
16,976 lb
Max Speed
4.1 mph
Drum Width
66 in
Gross Power
99.0 hp
All padfoot compactors

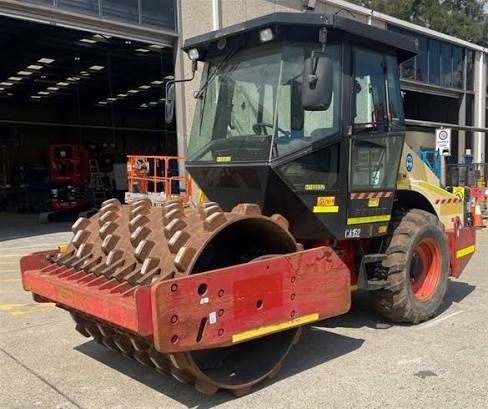

Dynapac CA152PD Padfoot Compactor
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,976 lb
Max Speed4.1 mph
Fuel Capacity59.5 gal

Engine

Engine specifications
Engine ModelB4.5T
Power Measured @2,200 rpm
Gross Power99.0 hp
Aspirationwater cooled turbo diesel
MakeCummins

Dimensions

Dimensions specifications
Ground Clearance14 in
Height - Top of Cab114 in
Overall Width84 in
Width Over Tires73 in
Turning Radius - Inside7 in
Overall Length w/o Blade192 in

Tires & Wheels

Tires & Wheels specifications
Tires420-70 B24

Drum

Drum specifications
Drum Width66 in
Vibration Frequency 131 vpm
Centrifugal Force - High32,148 lb
Drum Diameter48 in
Nominal Amplitude - High0 in
Pad Height3 in
Number of Pads132
Centrifugal Force - Low30,574 lb
Nominal Amplitude - Low0 in
Vibratory Frequency 243 vpm
Pad Surface Area13 in³
Frequency29 – 40 vpm
