Dynapac

CA2500D

Smooth Drum Roller

Max Speed
5.0 mph
Gross Power
119.4 hp
All smooth drum rollers

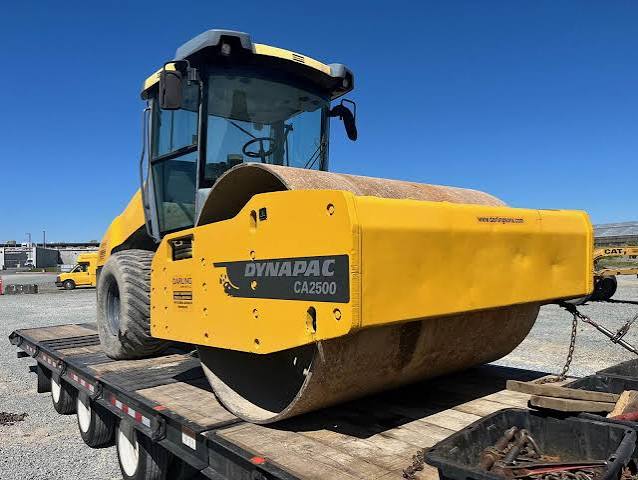

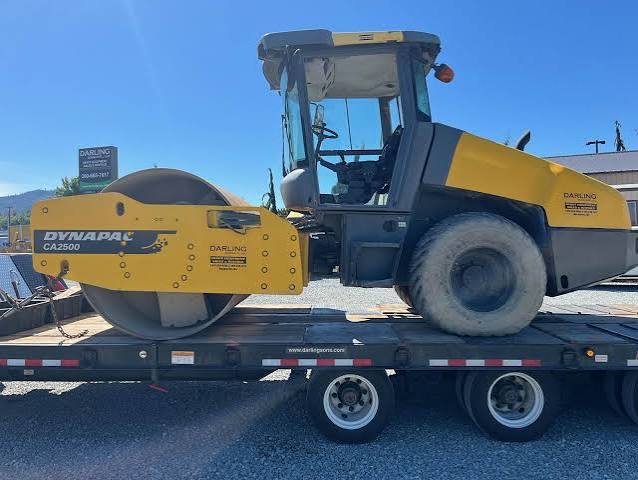

Dynapac CA2500D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: machine.market

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating weight ROPS49,163 lb
Max Speed5.0 mph
Operating Width91 in
Tire Size231 x 26 AW
DEF tank capacity5.0 gal

Engine

Engine specifications
Power Measured @2,200 rpm
Gross Power119.4 hp
Net Power130.1 hp
Engine MakeCummins
MakeCummins QSB4.5 T4i
Engine TypeWater cooled turbo Diesel

Dimensions

Dimensions specifications
Overall Length236 in
Height - Top of ROPS/FOPS114 in
Gradeability51.0 %
Turning Radius - Outside216 in
Overall Length w/o Blade236 in
Curb clearance18 in
Overhang Rear5 in
Overhang Front5 in

General Specifications

General Specifications specifications
Engine typeCummins QSF 3.8 (T4f) — Starting 2019 Model Year
DRUM WIDTH IN. (CM)84 (213) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)132 (335) — Starting 2019 Model Year
WIDTH IN. (CM)91 (231) — Starting 2019 Model Year
FREQUENCY HZ1,980/2,040 vpm — Starting 2019 Model Year

Drum

Drum specifications
Nominal Amplitude - High0 in
Static Linear Load12 lb-ft
Vibration Frequency33 – 34 vpm
Nominal Amplitude - Low0 in
Drum thickness1 in
Pad Height4 in
Pad Surface Area23 in³
