Dynapac

CA2500PD

Padfoot Compactor

Operating Weight
57,541 lb
Max Speed
7.0 mph
Drum Width
84 in
Gross Power
119.4 hp
All padfoot compactors

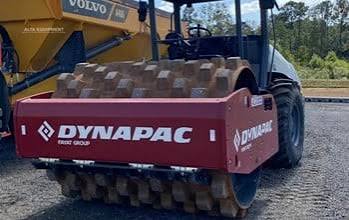

Dynapac CA2500PD Padfoot Compactor
1 / 5
Image 1 of 5
Image: romcoused.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight57,541 lb
Operating weight ROPS53,572 lb
Max Speed7.0 mph
Fuel Capacity72.0 gal
Operating Width91 in
Tire Size231 x 26 TR
DEF tank capacity5.0 gal

Engine

Engine specifications
Engine ModelQSF3.8
Power Measured @2,200 rpm
Gross Power119.4 hp
Engine MakeCummins
MakeCummins QSB4.5 T4i
Engine TypeWater cooled turbo Diesel

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheelbase118 in
Overall Length236 in
Height - Top of ROPS/FOPS118 in
Gradeability57.0 %
Height88 in
Turning Radius - Outside216 in
Curb clearance18 in
Overhang Front5 in
Overhang Rear5 in

Drum

Drum specifications
Drum Width84 in
Centrifugal Force - High58,450 lb
Drum Diameter59 in
Nominal Amplitude - High0 in
Pad Height4 in
Centrifugal Force - Low33,720 lb
Nominal Amplitude - Low0 in
Pad Surface Area23 in³
Vibration Frequency33 – 34 vpm
Drum thickness1 in
