Dynapac

CA300D

Smooth Drum Roller

Operating Weight
30,424 lb
Max Speed
3.2 mph
Drum Width
84 in
Gross Power
110.0 hp
All smooth drum rollers

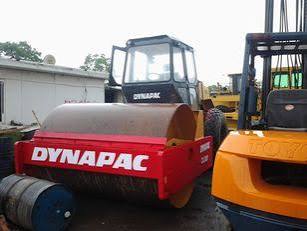

Dynapac CA300D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: india-mproduct.global-ce.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,424 lb
Operating weight ROPS27,668 lb
Max Speed3.2 mph
Fuel Capacity66.1 gal

Engine

Engine specifications
Engine Model4BTA 3.9C
Power Measured @2,200 rpm
Gross Power110.0 hp
Aspirationwater cooled turbo diesel with after cooler
Engine MakeCummins

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab118 in
Wheelbase10 in
Overall Length219 in
Overall Width84 in
Turning Radius - Inside122 in
Gradeability55.0 %
Height86 in
Turning Radius - Outside214 in
Drum Diameter61 in
Overhang Rear6 in
Overhang Front6 in

Tires & Wheels

Tires & Wheels specifications
Tires23.1x26

Drum

Drum specifications
Drum Width84 in
Drum Diameter61 in
Vibration Frequency 133 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High67,443 lb
Static Linear Load18 lb-ft
Centrifugal Force - Low32,822 lb
Nominal Amplitude - Low0 in
Drum thickness1 in
