Dynapac

CA5000D

Smooth Drum Roller

Operating Weight
18,700 lb
Max Speed
11.0 mph
Gross Power
174.0 hp
All smooth drum rollers

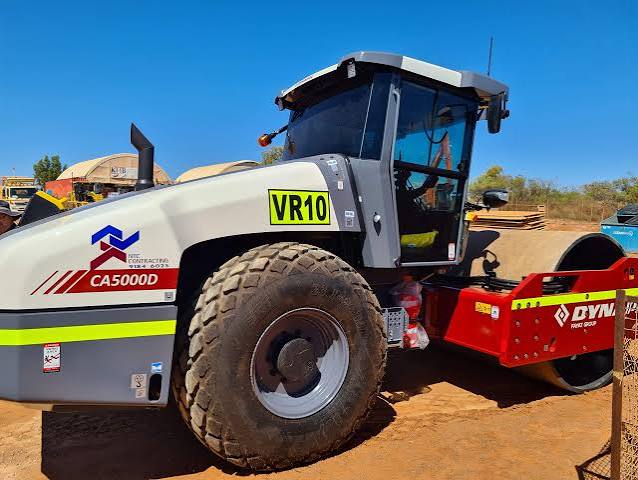

Dynapac CA5000D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight18,700 lb
Operating weight ROPS16,000 lb
Operating weight Cabin16,200 lb
Max Speed11.0 mph
Fuel Capacity71.9 gal
Operating Width92 in
Tire Size231 x 26 AW
Max Steering Angle38 °

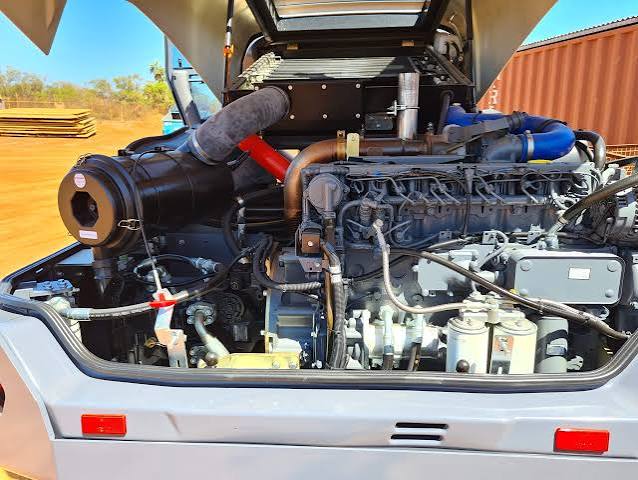

Engine

Engine specifications
Engine ModelTCD2012L06
Power Measured @2,200 rpm
Gross Power174.0 hp
Engine MakeDeutz
MakeDeutz TCD6 1L06 T4i

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab114 in
Wheelbase122 in
Overall Length246 in
Gradeability45.0 %
Turning Radius - Outside229 in
Curb clearance18 in
Overhang Rear5 in
Overhang Front5 in

Tires & Wheels

Tires & Wheels specifications
Tires231 x 26 AW

General Specifications

General Specifications specifications
Engine typeCummins QSB 4.5 (T4f) — Starting 2019 Model Year
DRUM WIDTH IN. (CM)84 (213) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)132 (335) — Starting 2019 Model Year
WIDTH IN. (CM)92 (233) — Starting 2019 Model Year
FREQUENCY HZ1,740/1,800 vpm — Starting 2019 Model Year

Drum

Drum specifications
Drum Diameter61 in
Vibration Frequency 129 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High74,187 lb
Vibration Frequency 230 vpm
Vibration Frequency29 – 30 vpm
Centrifugal Force - Low31,473 lb
Nominal Amplitude - Low0 in
Vibratory Frequency 230 vpm
