Dynapac

CA5500PD

Padfoot Compactor

Operating Weight
40,786 lb
Drum Width
84 in
Gross Power
174.0 hp
All padfoot compactors

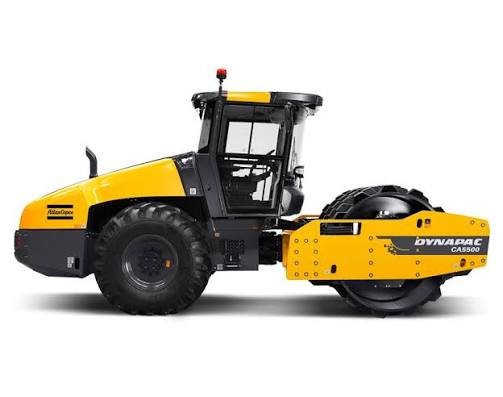

Dynapac CA5500PD Padfoot Compactor
1 / 5
Image 1 of 5
Image: asphaltcare.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight40,786 lb
Operating weight ROPS39,683 lb
Operating weight Cabin40,124 lb
Fuel Capacity71.9 gal
Tire Size231 x 26

Engine

Engine specifications
Engine ModelTCD2012L06
Power Measured @2,200 rpm
Gross Power174.0 hp
Engine MakeDeutz

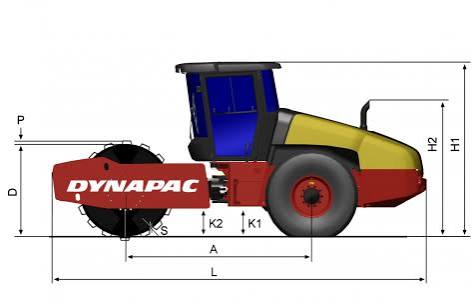

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheelbase122 in
Height - Top of ROPS/FOPS114 in
Turning Radius - Inside131 in
Gradeability42.0 %
Height84 in
Turning Radius - Outside229 in
Curb clearance18 in
Overhang Front5 in
Overhang Rear5 in

Tires & Wheels

Tires & Wheels specifications
Tires231 x 26

Drum

Drum specifications
Drum Width84 in
Vibration Frequency 129 vpm
Centrifugal Force - High80,931 lb
Drum Diameter61 in
Nominal Amplitude - High0 in
Pad Height4 in
Number of Pads130
Centrifugal Force - Low33,721 lb
Nominal Amplitude - Low0 in
Vibratory Frequency 230 vpm
Pad Surface Area23 in³
Vibration Frequency 230 vpm
