Dynapac

CA6500PD

Padfoot Compactor

Operating Weight
60,076 lb
Max Speed
6.9 mph
Drum Width
84 in
Gross Power
220.0 hp
All padfoot compactors

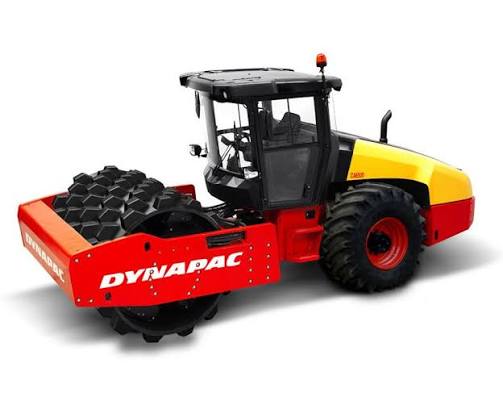

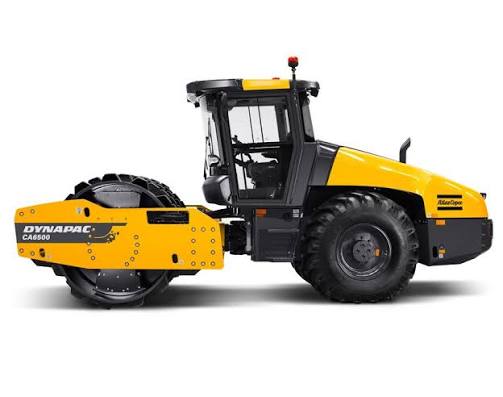

Dynapac CA6500PD Padfoot Compactor
1 / 5
Image 1 of 5
Image: dynapaccea.com.au

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight60,076 lb
Operating weight Cabin59,304 lb
Max Speed6.9 mph
Fuel Capacity84.6 gal
Tire Size231x26
Max Steering Angle38 °

Engine

Engine specifications
Engine ModelQSB6.7 T3
Power Measured @2,200 rpm
Gross Power220.0 hp
Engine MakeCummins

Dimensions

Dimensions specifications
Ground Clearance16 in
Wheelbase132 in
Overall Length257 in
Height - Top of ROPS/FOPS118 in
Turning Radius - Inside146 in
Gradeability45.0 %
Height88 in
Turning Radius - Outside236 in
Curb clearance19 in
Overhang Rear6 in
Overhang Front7 in

Drum

Drum specifications
Drum Width84 in
Vibration Frequency 128 vpm
Centrifugal Force - High74,187 lb
Drum Diameter67 in
Nominal Amplitude - High0 in
Centrifugal Force - Low57,102 lb
Nominal Amplitude - Low0 in
Vibration Frequency 230 vpm
Static Linear Load38 lb-ft
