Dynapac

CC1000 PLUS

Smooth Drum Roller

Operating Weight
3,900 lb
Max Speed
6.0 mph
Drum Width
39 in
Gross Power
24.0 hp
All smooth drum rollers

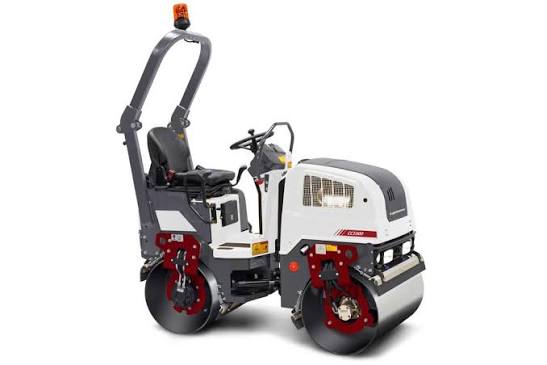

Dynapac CC1000 PLUS Smooth Drum Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,900 lb
Operating weight ROPS3,700 lb
Max Speed6.0 mph
Fuel Capacity6.0 gal

Engine

Engine specifications
Engine ModelD1105-E4B T4f
Power Measured @2,800 rpm
Gross Power24.0 hp
Engine MakeKubota
Engine TypeWater cooled turbo diesel

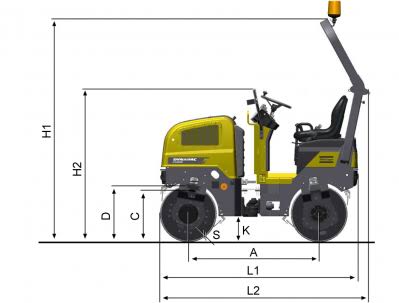

Dimensions

Dimensions specifications
Ground Clearance10 in
Wheelbase53 in
Overall Length83 in
Gradeability40.0 %
Height64 in
Curb clearance18 in
Overhang Rear2 in
Overhang Front2 in

Drum

Drum specifications
Drum Width39 in
Drum Diameter23 in
Nominal Amplitude - High0 in
Centrifugal Force - High3,800 lb
Drum thickness1 in
