Dynapac

CC4000 VI

Smooth Drum Roller

Operating Weight
62,391 lb
Max Speed
4.7 mph
Drum Width
66 in
Gross Power
130.1 hp
All smooth drum rollers
Dynapac CC4000 VI Smooth Drum Roller
1 / 5
Image 1 of 5
Image: dynapac.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight62,391 lb
Operating weight ROPS47,179 lb
Max Speed4.7 mph
Fuel Capacity48.0 gal
Water Spray Tank Fluid Capacity195.0 gal
Oscillating angle7 °
Steering Angle32 °
DEF tank capacity4.0 gal

Engine

Engine specifications
Engine ModelQSF3.8 IV
Power Measured @2,200 rpm
Gross Power130.1 hp
Engine MakeCummins
Engine TypeDiesel engine with water cooled turbo

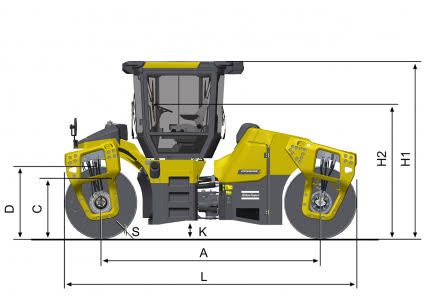

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab119 in
Wheelbase145 in
Overall Length193 in
Overall Width84 in
Turning Radius - Inside221 in
Gradeability45.0 %
Turning Radius - Outside287 in
Curb clearance32 in

Drum

Drum specifications
Drum Width66 in
Drum Diameter48 in
Vibration Frequency 151 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High25,400 lb
Vibration Frequency 267 vpm
Static Linear Load13 lb-ft
Centrifugal Force - Low16,640 lb
Nominal Amplitude - Low0 in
Drum thickness1 in
