Dynapac

CC900G

Smooth Drum Roller

Operating Weight
2,900 lb
Max Speed
5.0 mph
Gross Power
19.0 hp
All smooth drum rollers

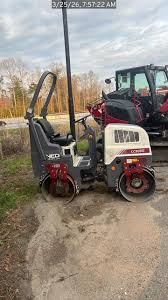

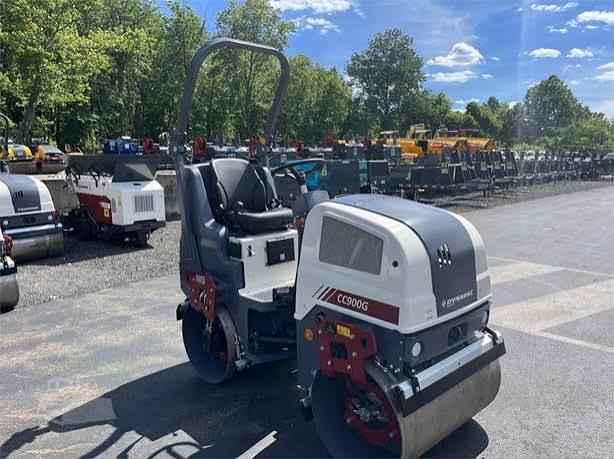

Dynapac CC900G Smooth Drum Roller
1 / 5
Image 1 of 5
Image: stephensonequipment.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,900 lb
Operating weight ROPS2,800 lb
Max Speed5.0 mph
Fuel Capacity6.1 gal
Operating Width38 in
Oscillating angle13 °
Steering Angle34 °

Engine

Engine specifications
Engine ModelGX620k1QVD
Power Measured @3,000 rpm
Gross Power19.0 hp
Engine MakeHonda 2359
MakeHonda
Engine Type4-stroke gasoline

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab91 in
Wheelbase53 in
Overall Length83 in
Overall Width39 in
Turning Radius - Outside108 in
Overhang Front1 in
Overhang Rear1 in

General Specifications

General Specifications specifications
Engine typeHonda -GX630RH — Starting 2024 Model Year
DRUM WIDTH IN. (CM)35 (88) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)72 (183) — Starting 2024 Model Year
WIDTH IN. (CM)38 (96) — Starting 2019 Model Year
FREQUENCY HZ4,200 vpm — Starting 2019 Model Year
FREQUENCY VPM (HZ)4,200 (70) — Starting 2024 Model Year

Drum

Drum specifications
Drum Diameter23 in
Vibration Frequency 170 vpm
Static Linear Load3 lb-ft
Vibration Frequency70 vpm
Drum thickness0 in
Nominal Amplitude - Med0 in
Centrifugal Force - MEd3,800 lb
