Dynapac
Case
602BPD
Smooth Drum Roller
25 specifications
1 / 5
Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 23,369 lb |
|---|---|
| Operating weight ROPS | 18,298 lb |
| Max Speed | 7.5 mph |
| Fuel Capacity | 30.4 gal |
| Water Spray Tank Fluid Capacity | 203.5 gal |
| Oscillating angle | 6 ° |
| Steering Angle | 25 ° |
Engine
| Engine Model | TD3.6 L4 IV |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 73.8 hp |
| Aspiration | watercooled |
| Engine Make | Deutz |

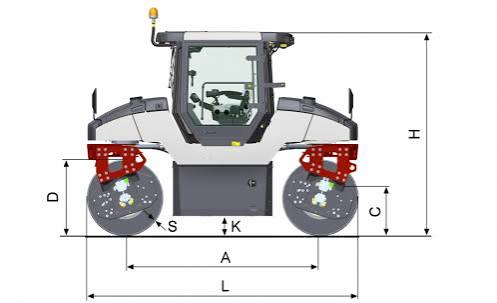

Dimensions
| Ground Clearance | 11 in |
|---|---|
| Height - Top of Cab | 119 in |
| Wheelbase | 113 in |
| Overall Length | 157 in |
| Overall Width | 65 in |
| Turning Radius - Inside | 104 in |
| Overhang Rear | 2 in |
| Overhang Front | 2 in |
Brakes & Steering
| Service brake | Hydrostatic in forward and reverse lever |
|---|---|
| Parking brake | Failsafe brake in both drums |
Drum
| Drum Width | 59 in |
|---|---|
| Drum Diameter | 44 in |
| Vibration Frequency 1 | 45 vpm |
| Nominal Amplitude - High | 0 in |
| Centrifugal Force - High | 17,985 lb |
| Vibration Frequency 2 | 55 vpm |
| Static Linear Load | 13 lb-ft |
| Centrifugal Force - Low | 13,489 lb |
| Nominal Amplitude - Low | 0 in |
| Drum thickness | 1 in |
