Eco Log

590C

Processor

Operating Weight
46,297 lb
Net Power
301.0 hp
All processors/harvesters

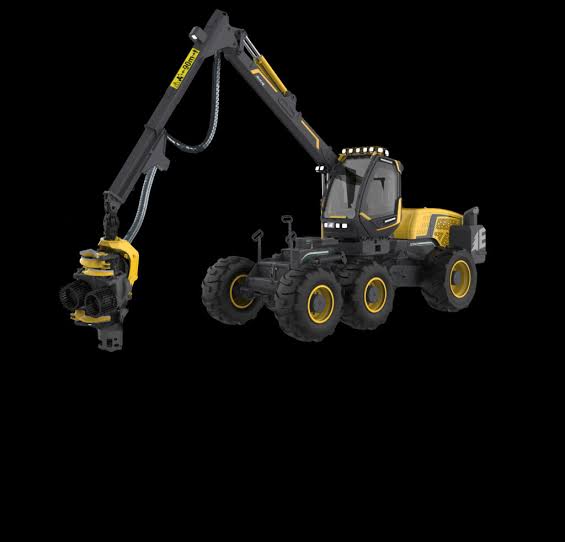

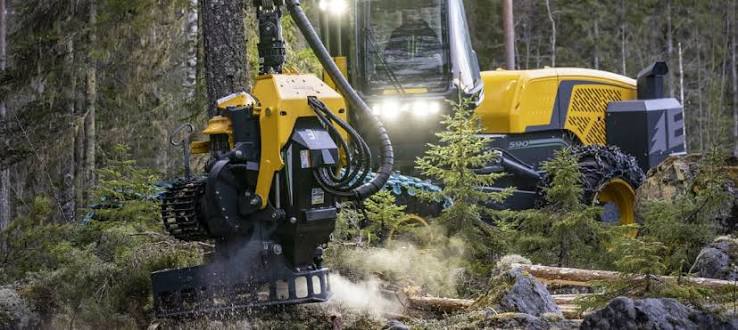

Eco Log 590C Processor
1 / 5
Image 1 of 5
Image: maskinpunkten.se

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight46,297 lb
Max Speed9.4 mph
Fuel Capacity105.7 gal
Operating Voltage24 V
Alternator Supplied Amperage150 A
Hydraulic System Fluid Capacity39.7 gal
Transmission Type6 wheel drive hydrostatic

Engine

Engine specifications
Engine ModelC9 ACERT tier III
Displacement537 in³
Net Power301.0 hp
Max Torque1,011 lb-ft

Dimensions

Dimensions specifications
Height - Top of Cab191 in
Wheelbase159 in
Overall Width121 in
Shipping Length - non tilt300 in
Forward Tilt15 °
Side Tilt25 °

Drive System

Drive System specifications
Tire Size - front700/50x30.5
Tire Size - rear710/55x34
Number of Axels3
Drive Configuration6 wheeldrive
