Ponsse

BEAVER

Processor

Operating Weight
30,644 lb
Gross Power
173.0 hp
All processors/harvesters

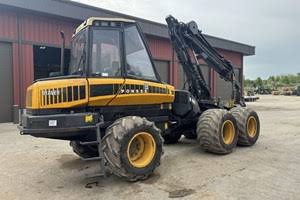

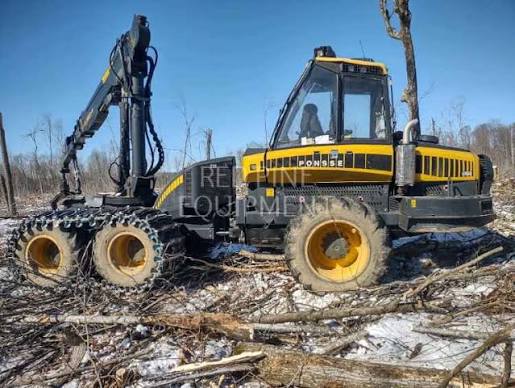

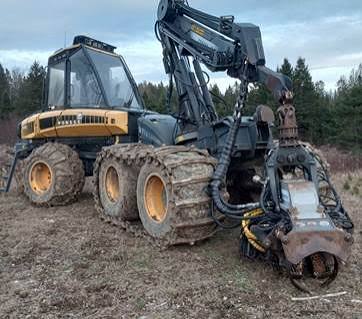

Ponsse BEAVER Processor
1 / 5
Image 1 of 5
Image: pacwestmachinery.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,644 lb
Max Speed15.6 mph
Fuel Capacity74.0 gal
Operating Voltage24 V
Alternator Supplied Amperage160 A
Hydraulic System Fluid Capacity52.9 gal
Transmission TypeHydrostatic-mechanical power

Engine

Engine specifications
Engine ModelOM904LA
Gross Power173.0 hp
Torque Measured @1,600 rpm
Max Torque498 lb-ft

Dimensions

Dimensions specifications
Height - Top of Cab149 in
Overall Width113 in
Shipping Length - non tilt278 in
Forward Tilt30 °

Undercarriage

Undercarriage specifications
Ground Clearance25 in

Boom

Boom specifications
Max Reach w/ Head395 in

Drive System

Drive System specifications
Tire Size - front600-26.5
Tire Size - rear600-26.5
Number of Axels2
