Eco Log

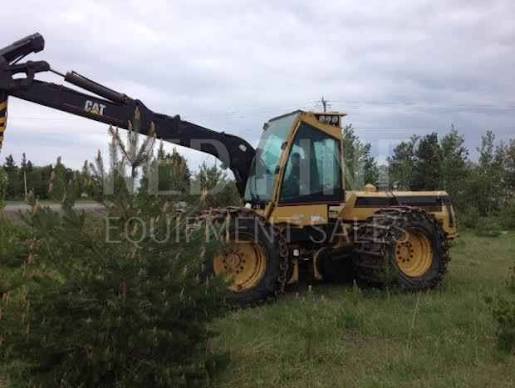

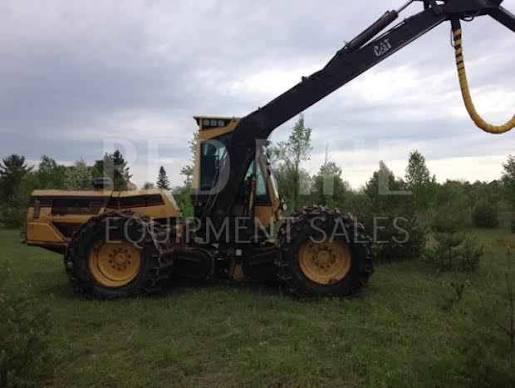

Caterpillar
570
Processor
18 specifications
1 / 5
Image 1 of 5
Specifications
18 data points
Operating Specifications
| Operating Weight | 35,274 lb |
|---|---|
| Max Speed | 11.2 mph |
| Fuel Capacity | 105.7 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 150 A |
| Transmission Type | Hydrostatic 2-gear |
Engine
| Engine Model | 3126B |
|---|---|
| Displacement | 439 in³ |
| Net Power | 201.0 hp |
| Max Torque | 701 lb-ft |
Dimensions
| Height - Top of Cab | 191 in |
|---|---|
| Wheelbase | 165 in |
| Overall Width | 110 in |
| Shipping Length - non tilt | 353 in |
Drive System
| Tire Size - front | 710/55x34 |
|---|---|
| Tire Size - rear | 710/55x34 |
| Number of Axels | 2 |
| Drive Configuration | 4 wheeldrive |
