John Deere

1070D

Processor

Operating Weight
31,085 lb
Gross Power
182.0 hp
All processors/harvesters

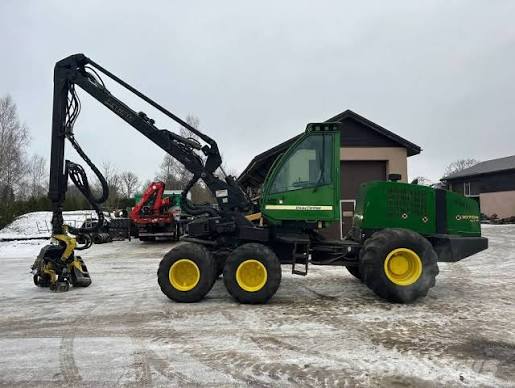

John Deere 1070D Processor
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight31,085 lb
Max Speed14.9 mph
Fuel Capacity79.3 gal
Operating Voltage24 V
Alternator Supplied Amperage140 A
Hydraulic System Fluid Capacity44.9 gal
Cooling System Fluid Capacity8.2 gal

Engine

Engine specifications
Engine Model6068HTJ
Displacement414 in³
Power Measured @1,900 rpm
Gross Power182.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,400 rpm
Max Torque575 lb-ft

Dimensions

Dimensions specifications
Height - Top of Cab143 in
Wheelbase138 in
Overall Width101 in

Boom

Boom specifications
Max Reach w/ Head395 in

Drive System

Drive System specifications
Tire Size - front600 x 22.5 16 PR ELS NK
Tire Size - rear750 X 26.5 20 PR TRS NK
