Champion
730A
Motor Grader
53 specifications
1 / 5
Image 1 of 5
Specifications
56 data points
Operating Specifications
| Max Operation Weight - Total | 35,384 lb |
|---|---|
| Max Operation Weight - Front Axle | 9,656 lb |
| Max Operation Weight - Rear Axle | 25,728 lb |
| Tire Size | 13X24(10PR) |
| Fuel Capacity | 79.0 gal |
| Hydraulic System Fluid Capacity | 25.0 gal |
| Tandem Case Fluid Capacity (each) | 8.1 gal |
| Operating Voltage | 24 V |
| Cooling System Fluid Capacity | 7.2 gal |
| Alternator Supplied Amperage | 45 A |
| Transmission Fluid Capacity | 6.7 gal |
| Circle Gearbox Fluid Capacity | 0.8 gal |
| Rear Diff/Final Drive Fluid Capacity | 11.1 gal |
| Oil System Fluid Capacity | 5.4 gal |
Engine
| Engine Model | 6 CT8.3 |
|---|---|
| Displacement | 507 in³ |
| Power Measured @ | 2,300 rpm |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,500 rpm |
| Max Power | 197.2 hp |
| Net Torque Gears 7-8 | 555 lb-ft |
| Net Power Gear 5-6 | 197.2 hp |
Hydraulic System
| Pump Flow | 43.1 gal/min |
|---|---|
| Pump Type | full hydraulic variable displacement |
| Relief Valve Pressure | 414 psi |
Dimensions
| Wheelbase | 61 in |
|---|---|
| Overall Length | 336 in |
| Width Over Tires | 101 in |
| Height to Top of Isomount Cab | 132 in |
| Blade Base | 104 in |
| Tandem Axle Wheelbase | 235 in |
| Front Ground Clearance | 25 in |
| Rear Ground Clearance | 13 in |
Transmission
| Max Speed - Forward | 26.1 mph |
|---|---|
| Max Speed - Reverse | 17.1 mph |
| Number of Gears - Forward | 6 |
| Number of Gears - Reverse | 3 |
| Transmission Type | full powershift |
Moldboard
| Moldboard Height | 38 in |
|---|---|
| Moldboard Width | 109 in |
| Side Shift Left | 21 in |
| Side Shift Right | 27 in |
| Max Depth of Cut | 7 in |
| Blade Down Pressure | 17,174 lb |
Circle
| Max Lift Above Ground | 25 in |
|---|---|
| Max Reach Outside Tires - Left | 105 in |
| Max Reach Outside Tires - Right | 108 in |
| Diameter | 69 in |
| Rotation | 360 ° |
| Blade Tip Angle - Rear | 28 ° |
Front Axle
| Wheel Lean | 18 ° |
|---|---|
| Oscillation - Total | 19 ° |
| Ground Clearance | 25 in |
Steering System
| Turning Radius | 284 in |
|---|---|
| Articulation Angle | 25 ° |
Comparable machines

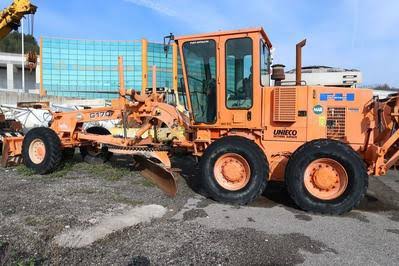

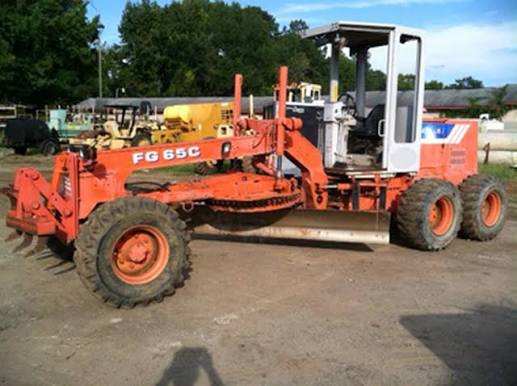

Other motor graders in a similar weight class.
