Gehl

383Z

Mini Excavator

Operating Weight
8,002 lb
Max Digging Depth
133 in
Net Power
28.8 hp
All mini excavators

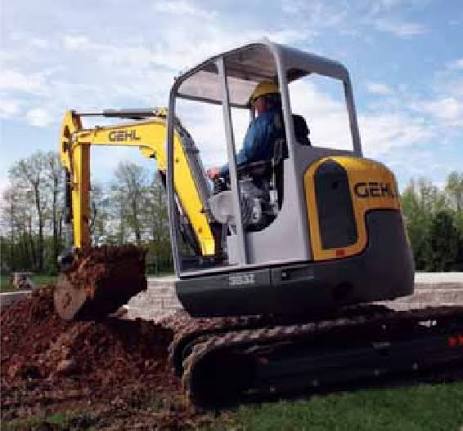

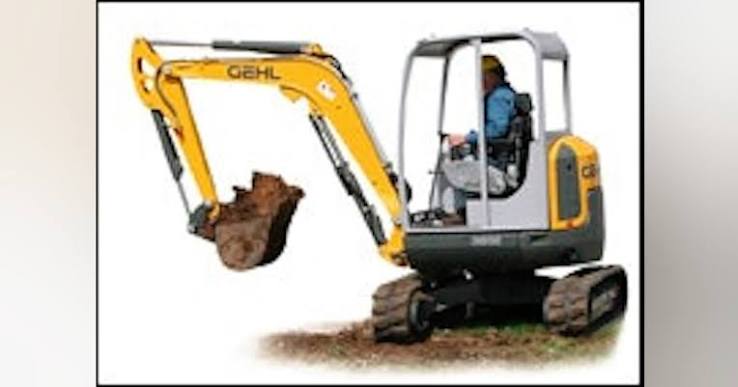

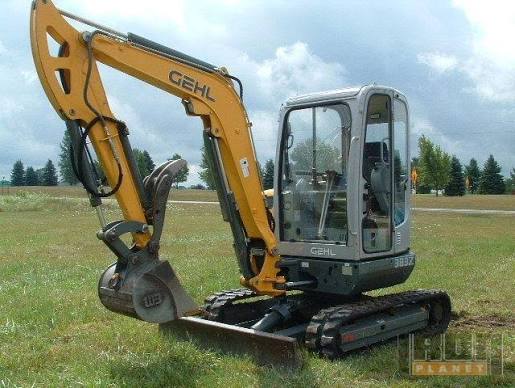

Gehl 383Z Mini Excavator
1 / 5
Image 1 of 5
Image: ebay.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,002 lb
Fuel Capacity11.7 gal
Hydraulic Pump Flow Capacity31.2 gal/min
Hydraulic System Fluid Capacity11.9 gal
Hydraulic System Relief Valve Pressure3,481 psi
Operating Voltage12 V
Alternator Supplied Amperage71 A

Engine

Engine specifications
Engine ModelYanmar 3TNV88-PNS A TIER II
Displacement100 in³
Power Measured @2,400 rpm
Net Power28.8 hp

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab100 in
Length of Track on Ground67 in
Tail Swing Radius35 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Number of Track Rollers per Side4
Max Travel Speed2.9 mph
Shoe Size12 in
Number of Carrier Rollers per Side1
Drawbar Pull6,614 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth133 in
Max Vertical Wall Digging Depth106 in
Max Loading Height132 in
Shipping Length of Unit190 in
Max Cutting Height183 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
