Grove

AP410

Carrydeck Crane

Gross Power
76.5 hp
Operating Weight
16,371 lb
Max Lift Capacity
17,350 lb
Max Speed - Forward
17.0 mph
All carrydeck cranes

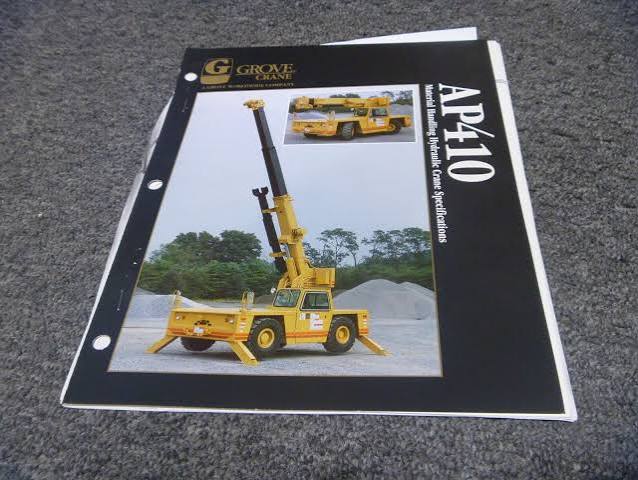

Grove AP410 Carrydeck Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,371 lb
Operating Voltage12 V
Tire Size10.00 x 15-16PR
Carrier Fuel Capacity30.2 gal
Number of Axels2
Upper Structure Hydraulic System Fluid Capacity30.2 gal

Dimensions

Dimensions specifications
Ground Clearance18 in
Transport Width73 in
Transport Height111 in
Transport Length179 in
Width w/ Outriggers Extended131 in
Upper Structure Tail Swing Radius43 in
Carrier Length173 in

Transmission

Transmission specifications
Max Speed - Forward17.0 mph
Transmission TypeAutomatic
Number of Forward Gears3
Number of Reverse Gears1

Boom

Boom specifications
Max Lift Capacity17,350 lb
Max Elevating Angle70 °
Max Height @ Max Raise Angle - no jib288 in
Min Height @ Max Raise Angle126 in
Number of Sections3
Swing Speed2 rpm
Max Working Radius264 in
Min Working Radius48 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power76.5 hp
Displacement238 in³
MakeGrove
Power Measured @2,500 rpm
Max Torque184 lb-ft
Torque Measured @1,200 rpm
